Positioning Left-Hand Steps

RXA0112754-UN-04JAN11

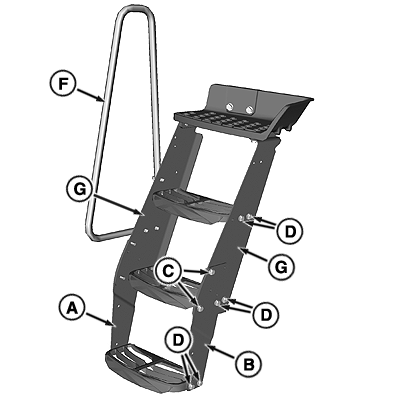

Wide Steps and Hand Rails—Tractors Equipped With Group 47/48 Tires

RXA0112752-UN-04JAN11

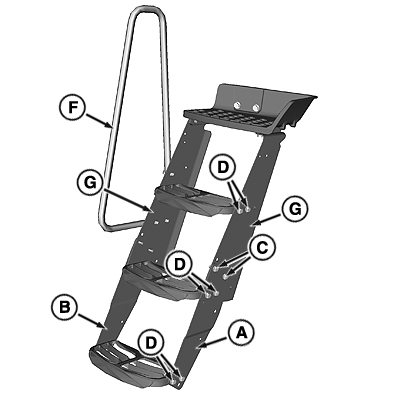

Narrow Steps and Hand Rails—Tractors Equipped With Group 47/48 Tires

RXA0112759-UN-07JAN11

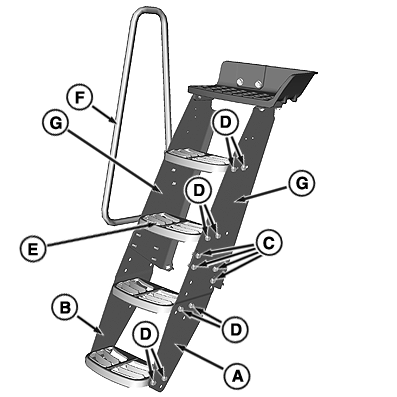

Wide Steps and Hand Rails—Tractors Equipped With Group 49 Tires

RXA0112756-UN-07JAN11

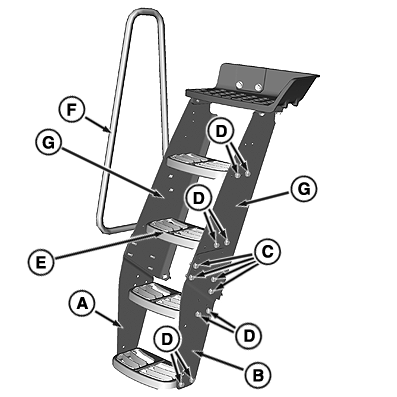

Narrow Steps and Hand Rails—Tractors Equipped With Group 49 Tires

A - Lower Side Panel 1

B - Lower Side Panel 2

C - Panel Positioning Bolts

D - Step Positioning Bolts

E - Middle Step (Group 49 Tires Only)

F - Handrail

G - Upper Side Panels

NOTE: Step assembly can be adjusted to either wide or narrow position. For wide positioned steps, use round holes in upper and lower side panels. For narrow steps, use square holes in upper and lower side panels.

Remove steps, by removing step positioning bolts (D).

Remove lower side panels 1 and 2 (A, B) by removing panel positioning bolts (C) on both sides of step assembly.

To switch from wide position to narrow position, lower side panels must be rotated and placed on the opposite sides of what they were originally placed.

Use step positioning bolts (D) to adjust individual steps to match step assembly width.

NOTE: Upper side panels (G) do not have to be removed to change step positions.

On tractors equipped with Group 49 tires, the positioning bolts for middle step (E) are also used to hold handrail (F) in place.

After correctly positioning steps and handrail, tighten cap screws to the specified torque.

Item	Measurement	Specification
Cap Screws	Torque	73 N·m (54 lb-ft)
