Cold Weather Starting Without Optional Starting Aid

NOTE:

TS1356-UN-18MAR92

RXA0110329-UN-13SEP10

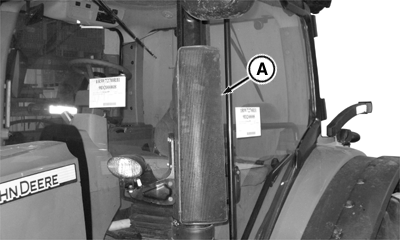

A - Air Intake Screen

A cold weather starting kit is available from your John Deere dealer.

CAUTION: Starting fluid is highly flammable. While using this product do not smoke and extinguish all flames. Turn off all pilot lights, stoves, heaters, electrical motors, and other sources of ignition while using this product and/or vapors are still present. Avoid contact of aerosol with battery terminals, solenoid, or other electrical/electronic components. Do not overuse this product. Keep cap on container and store in cool location when not in use.

IMPORTANT: Do NOT use starting fluid on tractors equipped with a 6.8 L engine. All 6.8 L engines are equipped with glow plugs. Glow plugs can cause pre-detonation of starting fluid.

1. Spray starting fluid into air intake screen (A) once for 2—3 seconds.

2. Follow steps as outlined in Starting the Engine.

   NOTE: If engine fails to start after three attempts, it may be necessary to consult a John Deere™ service technician.
