Using Secondary Brake (If Equipped)

RXA0100123-UN-26JAN09

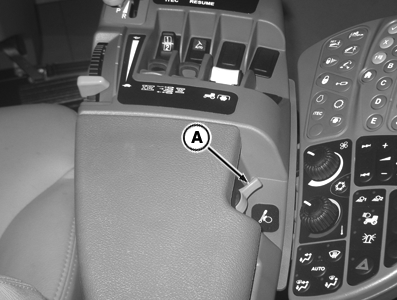

A - Secondary Brake Lever

NOTE: Lever is spring loaded to off position so it must be held back to engage brake.

Pull lever (A) back to engage secondary brake; brake indicator (on display) will light. To release secondary brake, release lever.
