Transmission Description and Controls

RXA0112141-UN-07JAN11

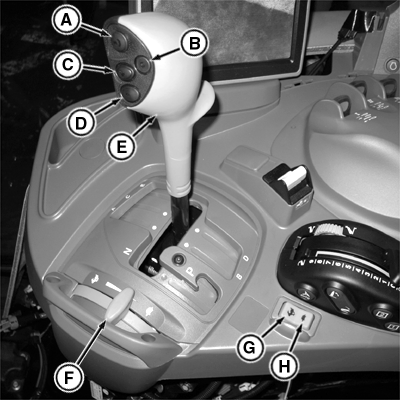

AutoQuad™ PLUS Shown (PowrQuad™ PLUS Similar)

RXA0112240-UN-07JAN11

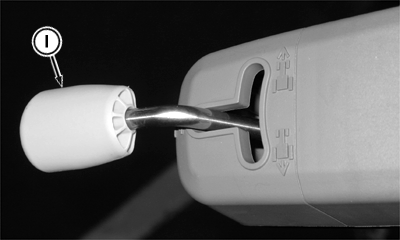

Left-Hand Reverser

A - Hand Declutch Button

B - Enable/Resume Button (AutoQuad™ PLUS Only)

C - Upshift Button (Range Lever)

D - Downshift Button (Range Lever)

E - Range Lever

F - Hand Throttle

G - Upshift Button (Console)

H - Downshift Button (Console)

I - Left-Hand Reverser Lever

PowrQuad™ PLUS transmission provides 20 forward and 20 reverse speeds. Left-hand reverser (I) provides fully modulated shift capability between forward and reverse. Range lever (E) provides five fully synchronized ranges shiftable on-the-go. Four power-shiftable gears are shifted manually using the upshift button (C) and downshift button (D) on the range lever or the upshift button (G) and downshift button (H) on the console.

AutoQuad™ PLUS transmission provides 20 forward and 20 reverse speeds. Left-hand reverser (I) provides fully modulated shift capability between forward and reverse. Range lever (E) provides five fully synchronized ranges shiftable on-the-go. Four power-shiftable gears can be shifted manually using the upshift button (C) and downshift button (D) on the range lever or the upshift button (G) and downshift button (H) on the console. Automatic gear shifting is also available with the Auto shift enable/resume button (B). In AUTO mode, engine speed, and throttle position are sensed. This allows gear changes within the selected range to be performed automatically.

PowrQuad™ PLUS and AutoQuad™ PLUS transmissions offer the capability for speed matching and rapid shifting.

• Speed Matching: Depressing the clutch pedal or hand declutch button (A) when changing ranges results in automatic gear selection. The gear selected matches actual vehicle ground speed.

• Rapid Shifting: Depress shift buttons on top of range shifter quickly and consecutively to skip gears. Shifts therefore can be made from 1 to 4 or from 4 to 1 within a range.
