Come Home Mode

RXA0111058-UN-07JAN11

Come home mode is used when the tractor becomes inoperable due to failures and must be moved.

In come home mode, tractor is limited to 1500 rpm, first gear, and any range.

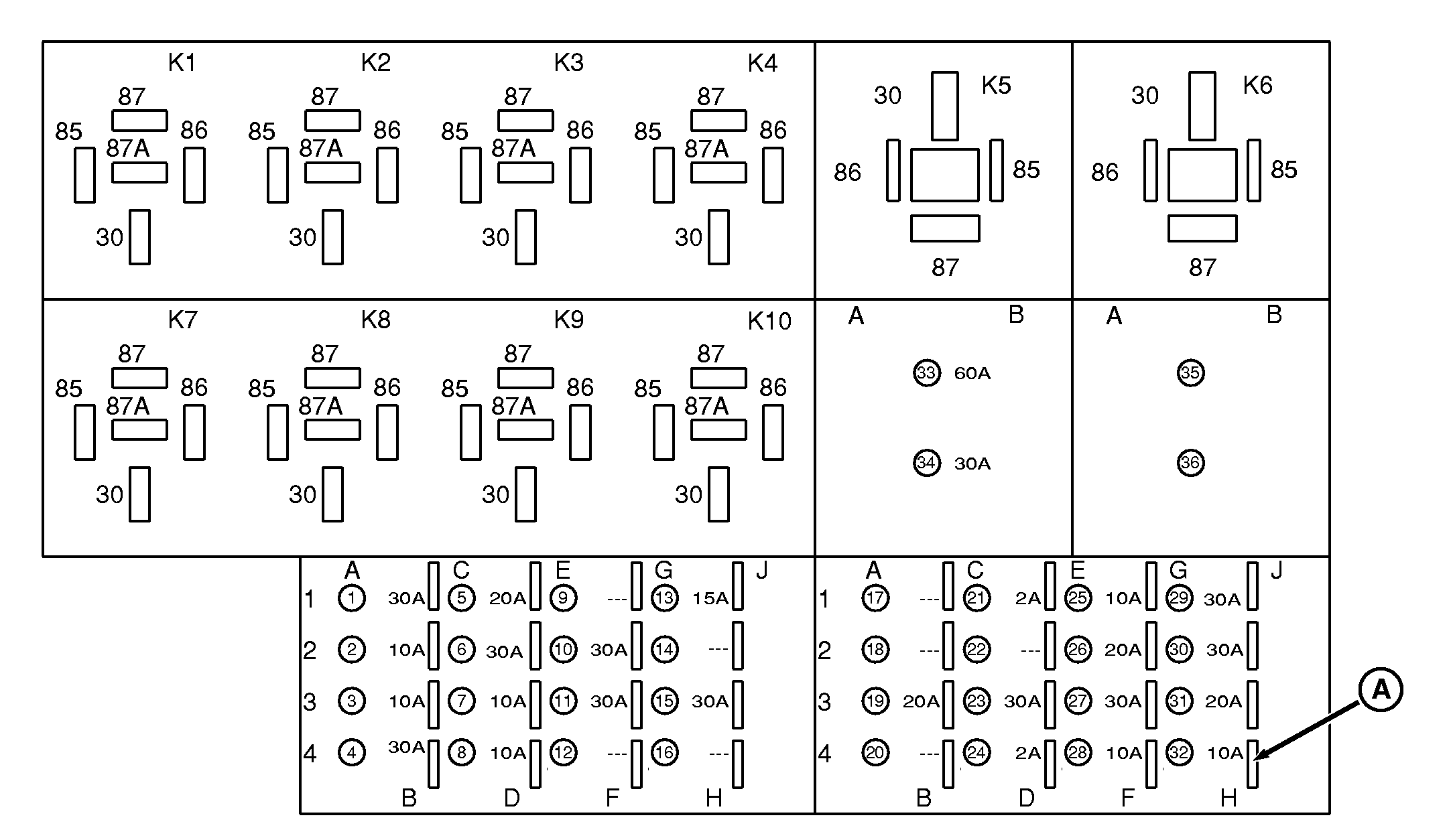

1. Remove fuse #32 (A) and retain.
2. Start engine.
3. Step on the brake pedal momentarily.NOTE: Removing #32 fuse (A) diverts hydraulic oil through backup pump which supplies hydraulic oil to brakes and steering. Tractor can safely be moved short distances at lower speeds.

   When tractor is placed in gear, backup pump will start. As long as tractor is in neutral any movement of brake pedals or steering wheel will engage backup pump to supply hydraulic oil as needed.

   When driving tractor in Come Home Mode, do not exceed tractor limited capability.



4. Depress clutch pedal.
5. Select Forward or Reverse direction.
6. Release clutch pedal to put tractor in motion.

”Transmission come home active” will appear on CommandCenter™ display when come home mode is active.
