CommandCenter™ Transmission Main Page

RXA0103941-UN-24JUL09

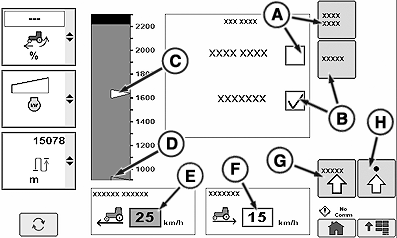

Transmission

RXA0112379-UN-10DEC10

A - Full Auto Mode

B - Custom Mode

C - Auto Shift Engine Speed

D - ECO Engine Speed

E - Maximum Forward Speed

F - Maximum Reverse Speed

G - Custom Settings

H - Advanced Settings

The CommandQuad™ transmission offers two modes to get the most fuel efficiency and load control from your tractor:

• Full Auto—Automatically adjusts Fuel Economy Minimum Engine Speed (D) allowing the tractor to use the most fuel efficient engine speed under light load. Automatically responds to loads created by the use of hitch or SCVs (load anticipation). During PTO use, top engine speed is automatically limited to provide an appropriate PTO speed.
• Custom—Operator can choose the Auto Shift Engine Speed, the ECO Engine Speed, and Load Anticipation reaction.

Forward maximum speed (E) or reverse maximum speed (F) displays the maximum forward or reverse speed limits. To change the maximum speed, select appropriate maximum speed box. When maximum speed box highlights, select desired speed. But if the operator changes the maximum forward or reverse speed below current set speed, the set speed would decrease to the maximum speed and the vehicle speed would decrease.
