Left-Hand and Right-Hand Reverser Shift Patterns

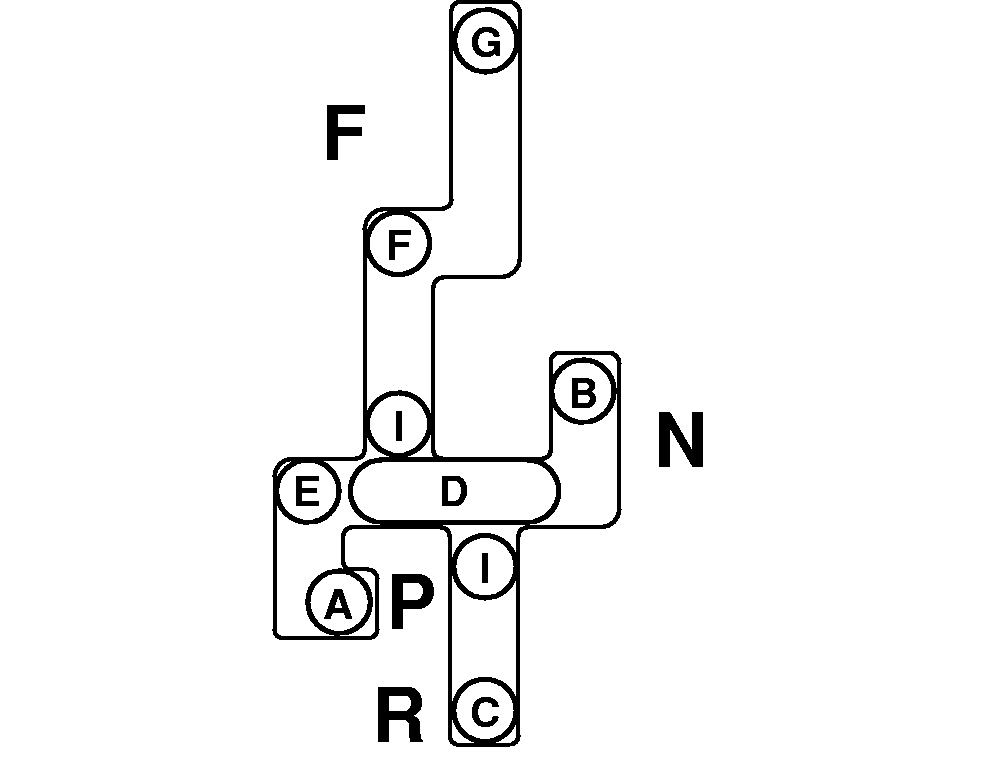

RXA0077572-UN-14MAY08

Right-Hand Reverser

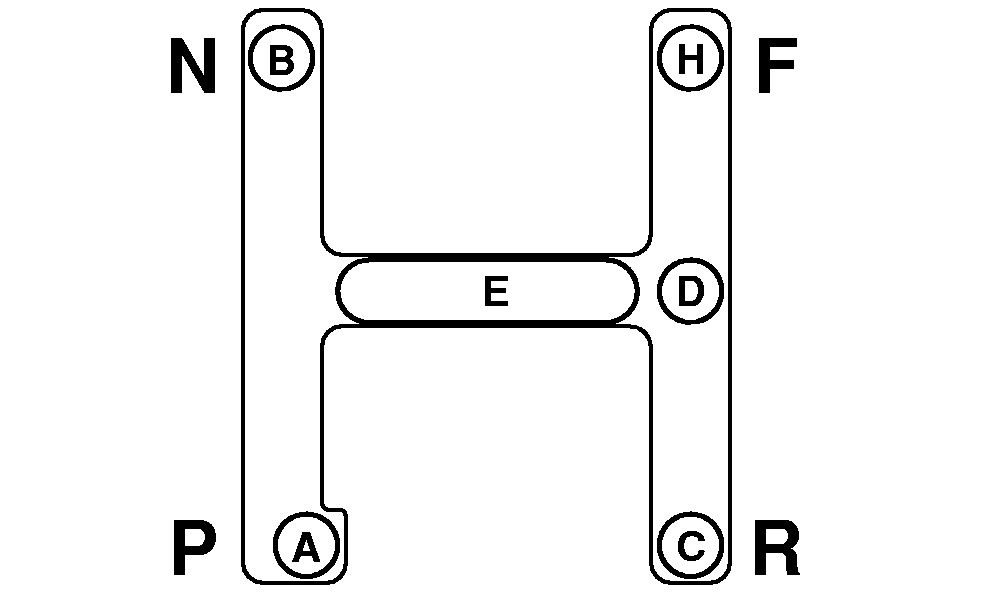

RXA0100319-UN-26JAN09

Left-Hand Reverser

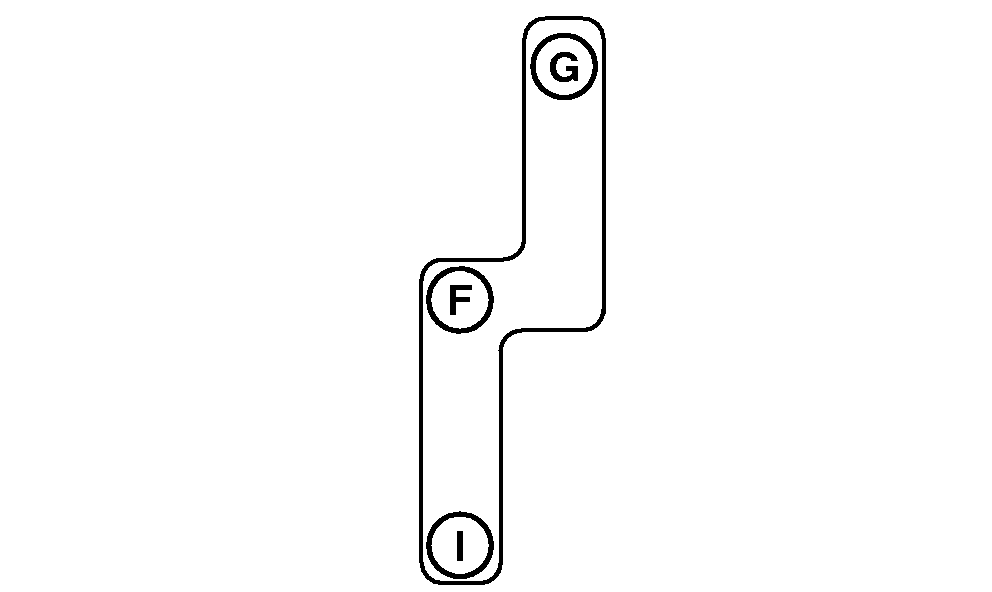

RXA0077571-UN-10JUN05

Left-Hand Reverser Speed Lever

A - Park

B - Neutral

C - Reverse

D - Power Zero™

E - Scroll Position

F - Forward Speed Band 1

G - Forward Speed Band 2

H - Forward

I - Minimum Speed

Park (A): Engages park brake to hold tractor stationary, preventing tractor from rolling; "P" will appear on corner post display.

Neutral (B): Disengages park brake allowing it to roll, but does not transmit power to the wheels; "N" will appear on the corner post display.

Reverse (C): Transmits power to wheels for rearward travel; ”R” will appear on corner post display.

Power Zero™ (D): Hand-held zero position is used to temporarily hold tractor stationary on a relatively flat surface.

Scroll Position (E): Scrolls through set speeds on corner post display continuously, while tractor is not moving.

Forward Speed Band 1 (F): Transmits power to wheels for forward travel; ”F1” will appear on corner post display.

Forward Speed Band 2 (G): Transmits power to wheels for forward travel; ”F2” will appear on corner post display.

Forward (H): Transmits power to wheels for forward travel; ”F” will appear on corner post display.

Minimum Speed (I): Transmits power to wheels in direction selected.
