Adjusting Reverse/Forward Set Speed Ratio

Reverse/Forward Ratio can be set to operate independent of each other or from 0.3 to 1.3 times as fast (in 0.1 increments). Forward and Reverse Set Speeds are the same at 1.0 setting (1 to 1 ratio).

Maximum reverse speed is up to 20 km/h (12 mph) regardless of ratio.

RXA0104032-UN-22JUL09

Transmission → Advanced Settings

RXA0112567-UN-22DEC10

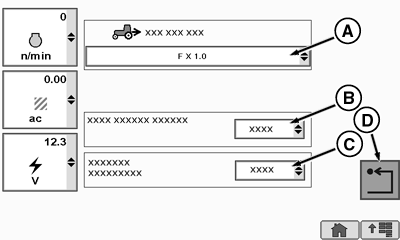

Transmission Advanced Settings Page

RXA0106031-UN-29JUL10

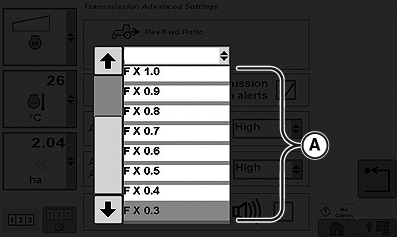

Rev/Fwd Options Drop Down Box

A - Rev/Fwd Drop Down Box

B - AutoClutch Sensitivity

C - Acceleration Aggressiveness

D - Return

1. Select Transmission.

2. Select Advanced Settings softkey.

3. Select Rev/Fwd drop-down box (A) which will display available options.

4. Select speed ratio from drop-down box options.

   Forward Set Speed is 4 km/h (2.5 mph) and Ratio is:	Reverse Set Speed km/h (mph) is:
   0.3	1.2 (0.4)
   0.4	1.6 (0.8)
   0.5	2.0 (1.2)
   0.6	2.4 (1.5)
   0.7	2.8 (1.75)
   0.8	3.2 (2.0)
   0.9	3.6 (2.2)
   1.0	4.0 (2.5)
   1.1	4.4 (2.7)
   1.2	4.8 (3.0)
   1.3	5.2 (3.2)
   Independent	No ratio because reverse and forward set speeds function independent of each other. Reverse Set Speed is limited to be no more than 5 km/h (3 mph) faster than Forward Set Speed.
