Operator Station Description and Functions

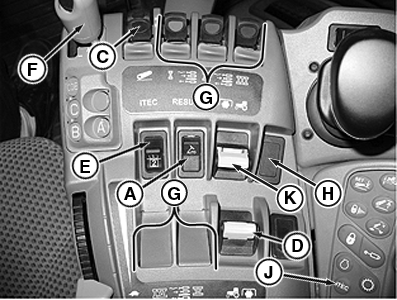

RXA0109321-UN-15OCT10

CommandARM™ Controls with CommandQuad™ Transmission Shown

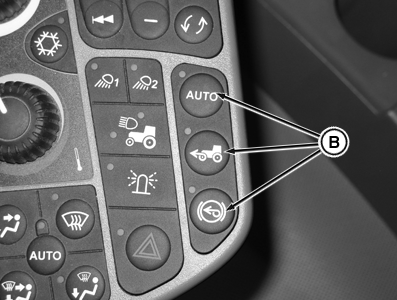

RXA0109308-UN-10AUG10

MFWD Buttons

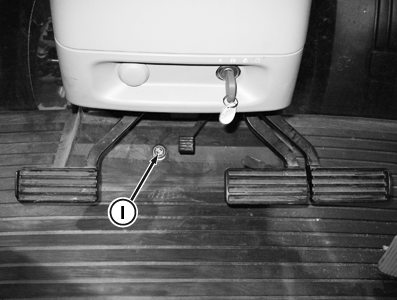

RXA0109324-UN-10AUG10

Differential Lock Button

Examples of two sequences and uses would be, one sequence made up of a series of functions, operations and distances used at start of field and a second sequence used at a water way in the center of the field. Each program can include up to 20 functions. The programs remain in the memory until they are deleted or overwritten, even if the electrical current is switched off.

iTEC™ has two sequences in which learned functions are stored. A sequence is a course of events from the start of the first recorded function to completion of last recorded function.

iTEC™ Functionality
	Item	Function(s)
A	AutoTrac™ Resume Switch	Resume
B	MFWD	On/Off/Auto
C	Rear Hitch	Raise, Lower, Cancel
D	Rear PTO	On/Off
E	Sequence Switch	1/2
F 2	CommandQuad™ Transmission	Upshift or Downshift in Forward Gear and Change Ranges with Push Buttons A, B, C
	IVT™/AutoPowr™ Set Speed Forward (IVT™/AutoPowr™ Only)	Change Set Speed
G	SCV (CommandARM™)	Extend/Retract/Float/Neutral
H 3	Sequence Switch (If Equipped)	3/4
I	Differential Lock	On/Off
J	iTEC™ Shortcut Button	Alternative Method Of Navigating To iTEC™ Pages
K	Front PTO (If Equipped)	On/Off

iTEC™ pages are accessed through CommandCenter™ menu icon or through iTEC™ shortcut button (J) on CommandARM™.
