Inhibit, Abort, Cancel, or Interrupt Conditions
Whenever a sequence execution or a new learning is not possible or is interrupted in the middle, iTEC™ system informs the operator about the new issue by displaying an Information Alert (B) or Service Alert (C) followed by a short text description (A) in the upper right corner of the displayed page.

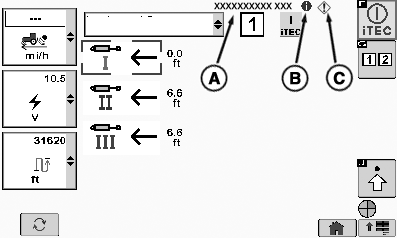

RXA0109066-UN-29JUL10
Operation Page
A - Text Description
B - Information Alert
C - Service Alert
Abort Execution
Error or Information Description | Displayed Short Text Description | Displayed Alert Notification | Reset Condition |
|---|---|---|---|
Abort Execution | |||
The transmission is shifted into Park OR Park information is not received any more. This condition will only apply to tractors where the control unit knows Park status. | PARK | Service Alert | 5 seconds after occurrence |
Operator presence is FALSE for > 5 seconds and ground speed < 0.5 km/h OR Operator presence information is not received any more. | OPERATOR PRESENCE | Service Alert | 5 seconds after occurrence |
SCV control unit fails to respond to an iTEC™ command within 5 seconds. | SCV TIMEOUT | Service Alert | 5 seconds after occurrence |
Hitch control unit fails to respond to an iTEC™ command within 5 seconds. | HITCH TIMEOUT | Service Alert | 5 seconds after occurrence |
A different sequence switch is actuated. | SEQUENCE SWITCH | Service Alert | 5 seconds after occurrence |
The sequence switch (see Sequence 1 and 2 Switch or Sequence 3 and 4 Switch) becomes faulted. | SEQUENCE SWITCH | Service Alert | 5 seconds after occurrence |
The amount of time to execute the sequence takes longer than 60 seconds. | TIMEOUT | Service Alert | 5 seconds after occurrence |
The Engine Speed drops below 200 rpm or exceeds 3000 rpm. | ENGINE SPEED | Service Alert | 5 seconds after occurrence |
A function included in the sequence has requested that the entire sequence be aborted (request made through IMS State = 9) due to a major fault which would also indicate a diagnostic trouble code for the specific function. Note: Not currently applicable for any functions. | FUNCTION REQUEST | Service Alert | 5 seconds after occurrence |
On/Off softkey is pressed | None | None | None |
Cancel Learn/Cancel Learn Distance | |||
Operator presence is FALSE for > 5 seconds and ground speed < 0.5 km/h | OPERATOR PRESENCE | Service Alert | 5 seconds after occurrence |
A different sequence switch is actuated | SEQUENCE SWITCH | Service Alert | 5 seconds after occurrence |
The sequence switch (see Sequence 1 and 2 Switch or Sequence 3 and 4 Switch) becomes faulted | SEQUENCE SWITCH | Service Alert | Sequence switch is not faulted any more |
The Learn Start/Stop softkey is not pressed within 60 seconds of entering Learn mode | TIMEOUT | Service Alert | 5 seconds after occurrence |
The Engine Speed drops below 200 rpm or exceeds 3000 rpm | ENGINE SPEED | Service Alert | 5 seconds after occurrence |
A function that is already learned has requested that the entire sequence be canceled (request made through IMS State = 9) due to a major fault which would also indicate a diagnostic trouble code for the specific function. Note: Not currently applicable for any functions | FUNCTION REQUEST | Service Alert | 5 seconds after occurrence |
20 functions have been learned (Not available with Learn Distance) | MAX 20 | Information Alert | 5 seconds after occurrence |
The Cancel and Return softkey is pressed | None | None | |
Distance starting to be counted when first function is learned exceeds 100 m (328 ft.) | None | None | 5 seconds after occurrence |
iTEC™ On | |||
iTEC™ ON – Passive: The Wheel speed is too low to start execution (shown upon sequence switch press). | WHEEL SPEED LOW | Information Alert | Wheel speed is > 0.5 km/h again |
iTEC™ ON – Execution: The Wheel speed is too low to execute a function in Execution Mode (symbol is shown while wheel speed is < Minimum Execution Wheel speed). | WHEEL SPEED LOW | Information Alert | Wheel speed is > 0.5 km/h again |
iTEC™ ON – Learn Distance: The Wheel speed is too low to execute a function in Learn Distance Mode (symbol is shown while wheel speed is < Minimum Execution Wheel speed). | WHEEL SPEED LOW | Information Alert | Wheel speed is > 0.5 km/h again |
ALL pages: The sequence switch (see Sequence 1 and 2 Switch or Sequence 3 and 4 Switch) becomes faulted. | SEQUENCE SWITCH | Service Alert | Sequence switch is not faulted any more |
iTEC™ ON – EDIT: The insert function is chosen but already 20 functions in the sequence. | MAX 20 | Information Alert | 5 seconds after occurrence |
Inhibit iTEC™ to be turned on | |||
The sequence switch (see Sequence 1 and 2 Switch or Sequence 3 and 4 Switch) becomes faulted. | SEQUENCE SWITCH | Service Alert | Sequence switch is not faulted any more |
iTEC is a trademark of Deere & Company | ZE59858,0000427-19-20110201 |
