Disconnecting Hydraulic Hoses—Rear of Tractor

RXA0109573-UN-16AUG10

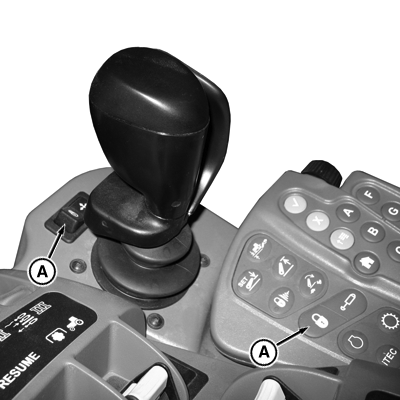

Electro-Hydraulic Single Lever Control

RXA0110344-UN-15OCT10

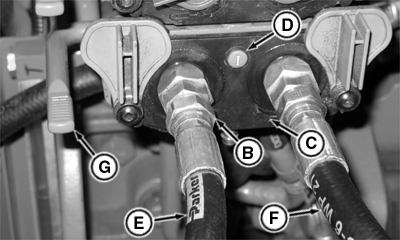

Receptacles with High Pressure Relief Levers

A - Transport Lock Switch/Lockouts

B - Extend Icon

C - Retract Icon

D - SCV Identifier Number

E - Extend Hose

F - Retract Hose

G - Handle

CAUTION: Prevent possible personal injury. Lock out SCV controls before detaching implements to prevent implement movement.

1. Lower implement to ground before disconnecting hydraulic hoses.

2. NOTE: To relieve hydraulic pressure in hoses, move SCV multi-function lever to float position, while engine is running.

   Move SCV multi-function lever to float position for a few seconds while engine is running.

3. Lock out SCV controls:

   • CommandARM™—Push transport lock switch (A).
   • Electro-Hydraulic Single Lever Control—Push transport lock switch (A).



4. Push handle (G) down slightly to relieve any pressure buildup of trapped oil before removing hoses.

5. IMPORTANT: Forcing or jerking SCV hoses when disconnecting can damage hose ends and SCV couplers. If hoses cannot be removed easily, relieve pressure in hydraulic system by moving SCV lever to float position for a few seconds with engine running and using handle (G) to extract hoses.

   Pull hoses straight out from receptacles.

6. Rotate dust covers down to cover receptacles.
