Connecting/Disconnecting Hydraulic Hoses—Mid-Mount Valve or Front of Tractor (If Equipped)

CAUTION:

RXA0109573-UN-16AUG10

Electro-Hydraulic Single Lever Control

RXA0110346-UN-13SEP10

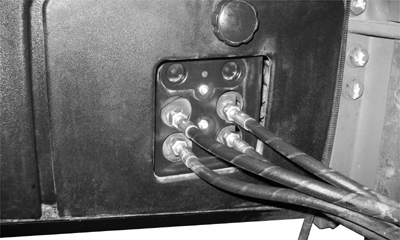

Mid-Mount Receptacles

RXA0109349-UN-10AUG10

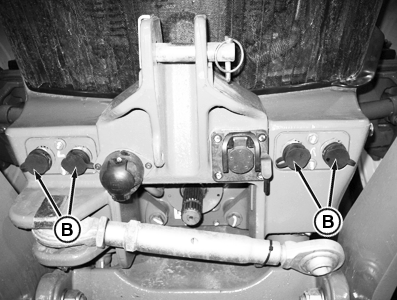

Front Hitch Receptacles

A - Transport Lock

B - Front Receptacles

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly.

Any dirt, dust, or other foreign material can damage hydraulic system. Thoroughly clean hydraulic hoses and SCVs before connecting implement to tractor.

NOTE: Hydraulic receptacles at front of tractor and/or at mid-mount valve (If Equipped) are operated by an electro-hydraulic single lever control. Optional equipment available: Loader or front hitch with hydraulic outlets.

1. Engage transport lock (A).

2. Clean dust caps/plugs.

3. Pull off caps/plugs to expose receptacles (B).

4. Push hoses firmly into receptacles.

   • If equipped with loader, see procedure in loader Operator’s Manual to identify correct hose connections.



SCV Numbers And Corresponding Colors
SCV Number	Color	Function
SCV XI	Green	Front Hitch
SCV XII	Blue	Front SCV Connection
SCV XIII	Brown	Front SCV Connection

IMPORTANT: Extend and retract functions on the mid-mount SCV stack are opposite of the rear SCV stack. Left is Retract, Right is Extend.
