Electro-Hydraulic Single Lever Control (If Equipped)

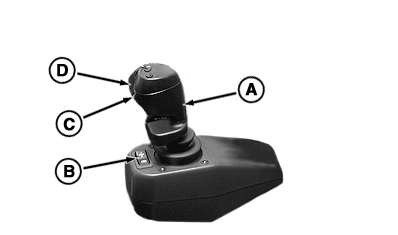

RXA0084009-UN-18OCT05

A - Single Lever Control

B - Transport Lock Switch

C - Rocker Switch, Third Function

D - Interlock Switch Actuator

IMPORTANT: If electro-hydraulic single lever control is installed on CommandARM™, lever may contact right-hand console if seat is placed in full right-hand swivel position. Check seat swivel as well as seat height and fore-aft adjustment to avoid this contact.

Single lever control can be used to operate optional two or three function mid-mount valves or any rear SCV. (See Advanced Settings Page—Single Lever Control in this section for single lever control configuration.) See your John Deere™ dealer for more information on these attachments.

NOTE: Set timed detent to 0 (No Timed Detent) when using Single Lever Control to operate a loader.

Operating SCVs Using Single Lever Control

Single lever control (A) is used to operate any combination of front or rear SCVs.

Switch (B) is used to lock out the electro-hydraulic functions for the SCVs currently configured to the single lever control.

Interlock switch actuator (D) prevents unintentional actuation of the Control Lever. The lever can operate only when the actuator is open (operator’s hand must hold it open). The actuator must be closed, at least once since startup, before using any lever function. If the lever is not used for longer than 10 minutes with the actuator open, all functions associated with the Control Lever will be locked out. To overcome lockout, momentarily remove hand from actuator and allow it to close.

If the loader is connected to the tractor correctly, the operator can set any SCV on any axis of the single lever control. See Advanced Settings Page—Single Lever Control in this section.

NOTE: AUX will not provide detent or float functions.

Float position: Once float is applied, the interlock switch actuator is no longer required to remain open.
