Identifying Hitch Related Controls and Switches

RXA0107323-UN-16APR10

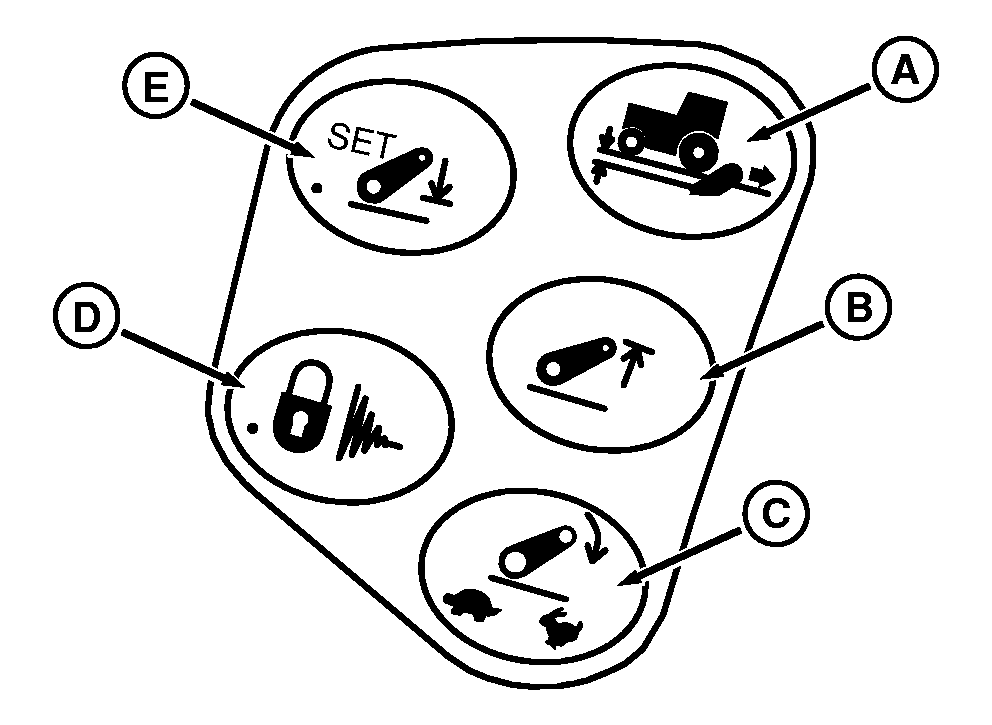

Shortcut Buttons

RXA0113352-UN-11FEB11

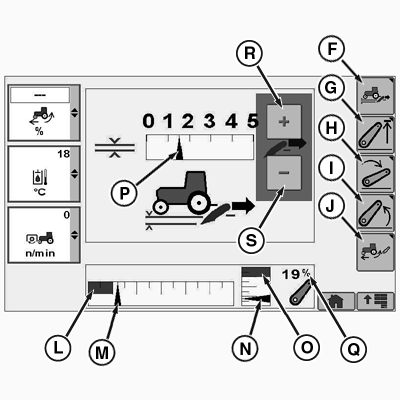

Softkeys

RXA0107248-UN-07APR10

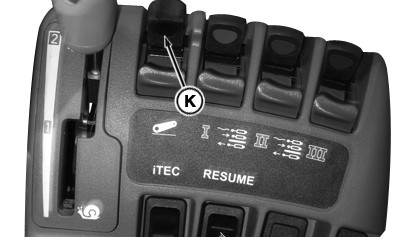

Hitch Lever

A - Load Depth Shortcut Button

B - Upper Limit Shortcut Button

C - Drop Rate Shortcut Button

D - Transport Lock/Dampening Button

E - Operating Depth Shortcut Button

F - Load Depth Softkey

G - Upper Limit Softkey

H - Drop Rate Softkey

I - Raise Rate Softkey

J - Hitch Slip Response Softkey

K - Hitch Command Lever

L - Operating Depth Indicator

M - Commanded Depth Indicator

N - Hitch Position Indicator

O - Upper Set Limit

P - Load Depth

Q - Hitch Position Value

R - Touch Screen Increase Value (If Equipped)

S - Touch Screen Decrease Value (If Equipped)

Select desired page by pressing required shortcut button (A, B, C, or E).

• A—Load Depth shortcut button
• B—Upper Limit shortcut button
• C—Drop Rate shortcut button
• E—Operating Depth shortcut button

Set Operating Depth

• Lower implement to desired operating depth using hitch command lever (K)
• Select Operating Depth shortcut button (E) to save operating depth.

Turn at End

• At end of field, pull lever into raise detent and release. Hitch will raise to Upper Set Limit (O).
• After turnaround, push lever into lower detent and release. Hitch will lower to Operating Depth (L).

Hitch command information appears in lower portion of hitch pages on the CommandCenter™. Commanded depth is represented by commanded depth indicator (M). Hitch lower limit depth setting is represented by operating depth indicator (L). Pressing depth set button will move and align saved operating depth indicator with commanded depth indicator. Hitch position value (Q) represents actual hitch position in percentage while actual hitch position is displayed by hitch position indicator (N). When hitch is down, the hitch position value is 0%. When hitch is up, the hitch position value is 100%.
