Adjusting Hitch Height Limit

1. Select upper limit shortcut button (A).

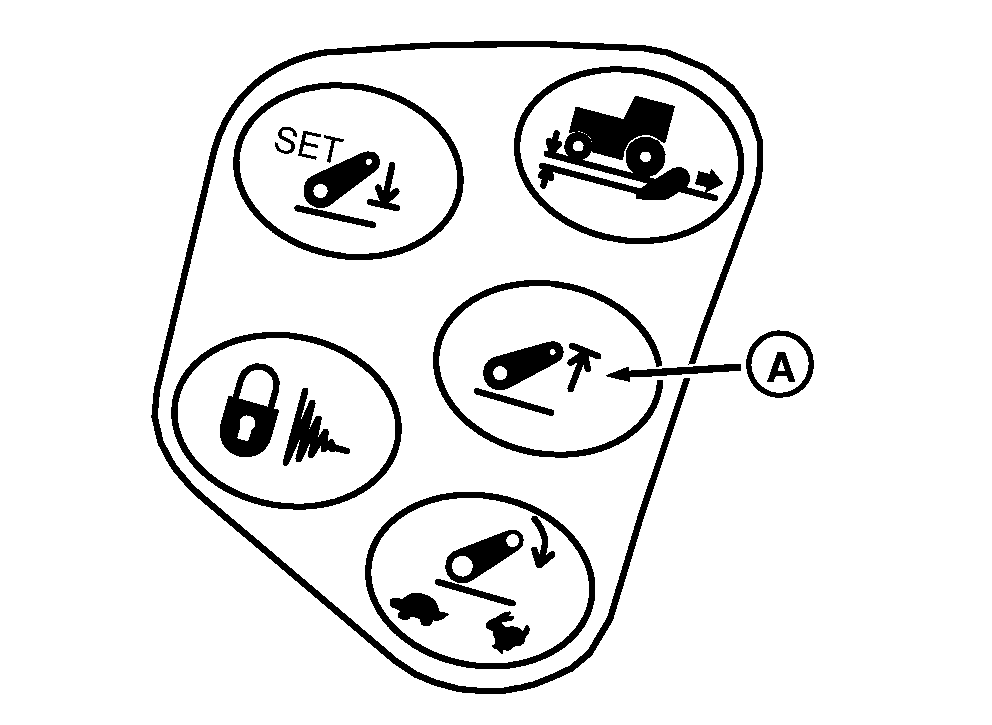

   RXA0107325-UN-16APR10

   Hitch Upper Limit Shortcut Button

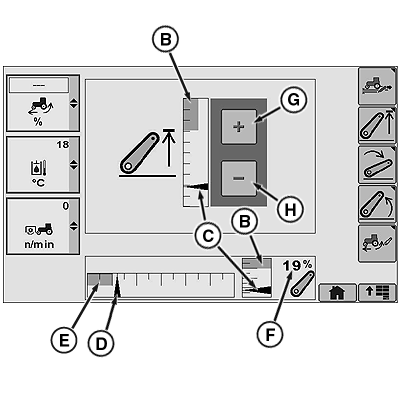

   RXA0113355-UN-11FEB11

   Hitch Load/Depth Page

   A - Upper Set Limit Shortcut Button

   B - Upper Set Limit

   C - Hitch Position Indicator

   D - Commanded Depth Indicator

   E - Operating Depth Indicator

   F - Hitch Position Value

   G - Touch Screen Increase Value (If Equipped)

   H - Touch Screen Decrease Value (If Equipped)

   NOTE: Changes to upper limit setting take place immediately.

---




2. Move upper set limit (B) to desired position. Current hitch position is represented by indicator (C).
