Adjusting Hitch Drop Rate

IMPORTANT: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least 2 seconds.

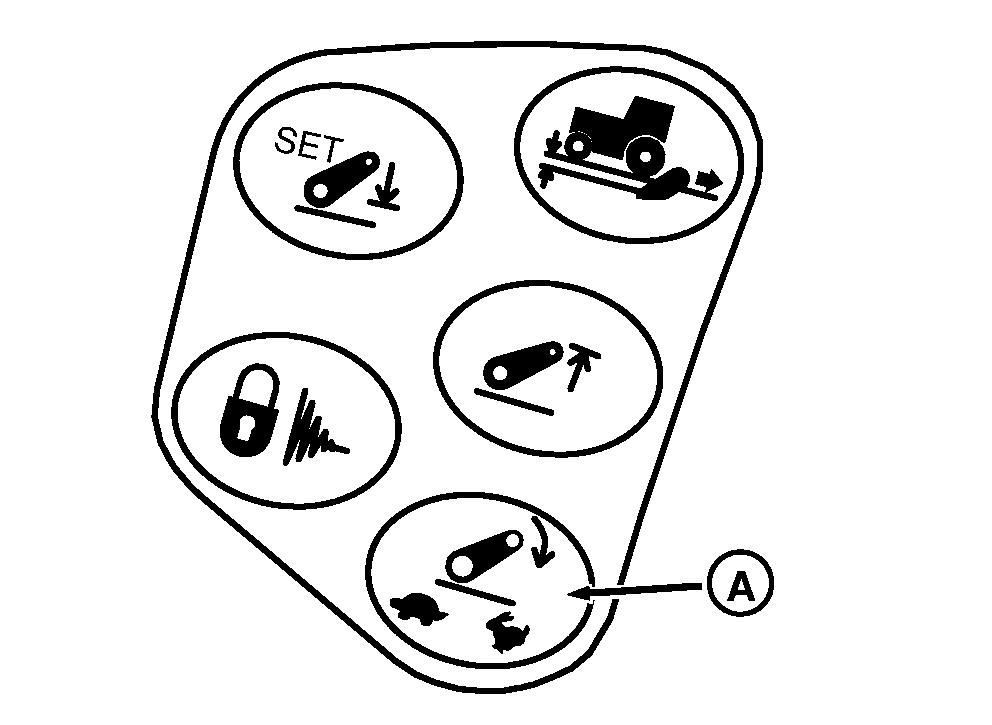

  1. Press drop rate shortcut button (A).

    RXA0107326
    RXA0107326-UN-16APR10

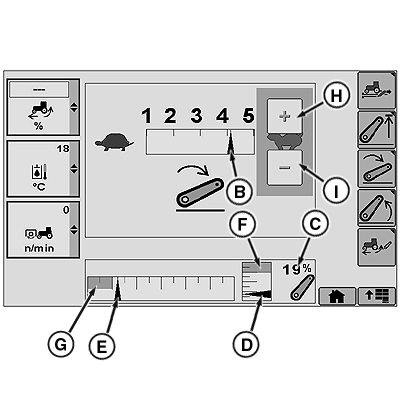

    RXA0113357
    RXA0113357-UN-11FEB11

    A - Drop Rate Shortcut Button

    B - Drop Rate

    C - Hitch Position Value

    D - Hitch Position Indicator

    E - Commanded Depth Indicator

    F - Upper Set Limit

    G - Operating Depth Indicator

    H - Touch Screen Increase Value (If Equipped)

    I - Touch Screen Decrease Value (If Equipped)



  2. Observe display. Drop rate setting is represented by indictor (E).

    NOTE: Changes to rate of drop setting take place immediately.

  3. Rotate thumb wheel to adjust drop rate and observe drop rate setting indicator (B).

ZE59858,0000456-19-20101130
