Hydraulic Center Link (If Equipped)

RXA0112269-UN-10DEC10

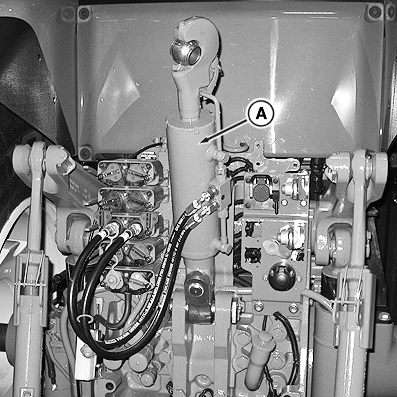

Hydraulic Center Link

RXA0086282-UN-26JAN06

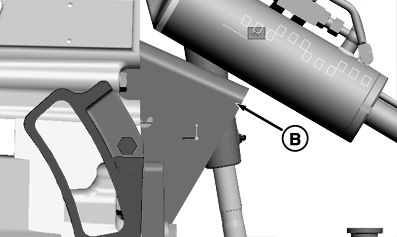

PTO Shield

A - Hydraulic Center Link

B - PTO Shield

NOTE: Do not use continuous flow or timed detents with hydraulic center link. Make sure that SCV detent time is set to 0.

The length of the hydraulic center link (A) can be adjusted from the operator’s seat using one of the selected control valves.

Place PTO shield (B) in down position when using hydraulic center link in extreme conditions when lift links are extended to maximum length.

IMPORTANT: Make Sure that the locking mechanism is engaged. Make sure that the cord is free to move. A tight cord will release the hook locking mechanism. Allow sufficient clearance in working zones. Do not subject the center link to excessive loads.

Clean all mobile parts as required and apply commercial grease to ensure smooth operation of these parts. Interference of the locking system is, in most cases, caused by dirt accumulation.
