Adjusting Lateral Float

RXA0112525-UN-14DEC10

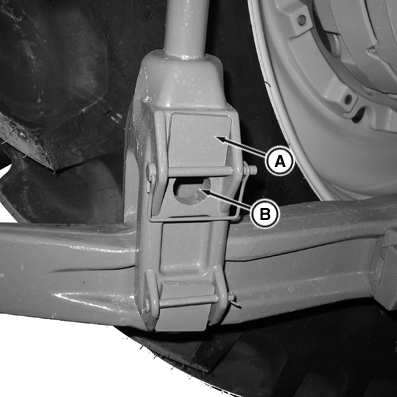

A - Upper Holes

B - Lower Holes

Put lateral float pins in upper holes (A) to hold implement rigidly.

Put lateral float pins in lower holes (B) to allow either draft link to raise slightly as implement follows ground surface.
