Detaching Implement from Quick Coupler

RXA0087968-UN-21MAR06

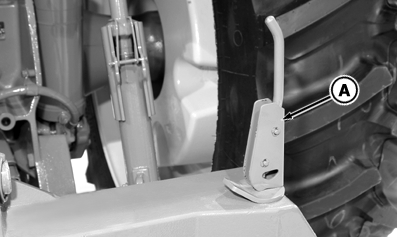

Coupler Latch Lever

A - Latch Lever

1. Raise both latch levers (A) with implement raised.

2. Disconnect hydraulic hoses and electrical connections.

3. Lower implement to ground. Continue lowering quick coupler until hooks clear implement hitch pins.

4. Carefully drive tractor away from implement.
