Installing and Using Clevis Assembly Cat 2 Drawbar
IMPORTANT:
RW21410A-UN-02AUG99

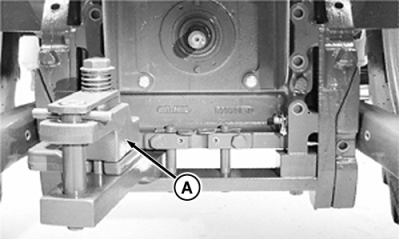

A - Clevis
The clevis may need to be removed depending on PTO application.There are two designs for the Cat 2 drawbar clevis. The picture shows the standard design and there is a low profile drop pin design like type 3.
Clevis (A) must be attached ONLY to top of drawbar. If the drawbar is turned over, remove the clevis assembly and attach to top of drawbar.
Clevis Assembly Retaining Cap Screws—Specification | |
Category 2—Torque | 750 N·m (550 lb-ft) |
Connect implement to drawbar, using pin of clevis assembly.
