Attaching PTO-Driven Implement

TS1644-UN-22AUG95

RXA0088089-UN-27MAR06

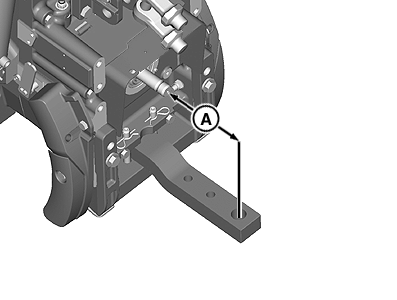

A - PTO Shaft-to-Pin Hole Distance

CAUTION: Entanglement in rotating driveline can cause serious injury or death. STOP THE ENGINE and be sure that PTO driveline is stopped before making adjustments, connections, or before cleaning PTO-driven equipment.

Keep PTO shield and driveline shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing.

Lock drawbar in center, no-sway position shown and remove clevis assembly.

PTO Shaft	Distance from PTO Shaft End to Hitch Pin Hole (A)
540 rpm - 6 Splines1	350 mm (14.0 in.)
1000 rpm - 21 Splines1	400 mm (16.0 in.)
1000 rpm - 20 Splines2	508 mm (20 in.)

Attach implement to drawbar before connecting PTO driveline. If implement will be connected to quick coupler, be sure that drawbar will not interfere.

Connect driveline to PTO shaft. Turn shaft slightly by hand, to line up splines. Be sure that yoke is in correct position and firmly locked.

Move PTO shield into position. (See Rear PTO Shield in this section.)
