Rear PTO Shield—Type 3 PTO

CAUTION: Avoid personal injury. Put PTO shield in correct position at all times. Do not use shield as a step.

NOTE: Type 3 PTO uses 45 mm (1-3/4 in.) shaft with 20 splines.

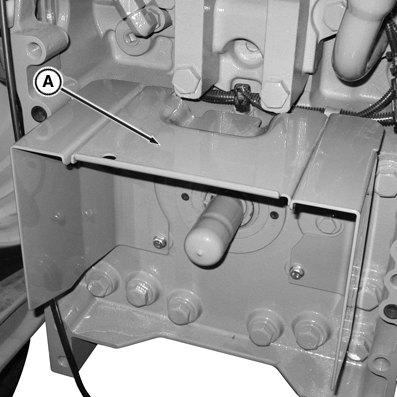

RXA0112528-UN-14DEC10

Normal Position

A - Top Plate

Make sure to lower top plate (A) before engaging PTO.

When using hydraulic hitch center link, PTO shield should be lowered to provide the proper clearance. See Hydraulic Center Link in the Hitch section for more information.
