Operating Shiftable 3-Speed Rear PTO (If Equipped)
IMPORTANT:

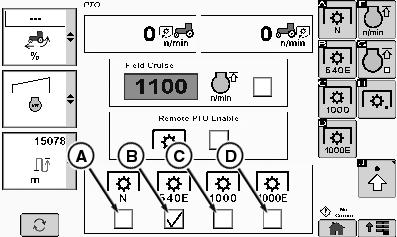

RXA0111481-UN-14OCT10
A - Neutral Position
B - 540E rpm Position
C - 1000 rpm Position
D - 1000E rpm Position
Make sure that selected PTO speed is correct for the implement attached. Incorrect speed can result in serious damage to the implement. Excessive engine rpm can also cause excessive PTO speeds resulting in implement damage.IMPORTANT: Implements can be operated at 540 rpm only if the power input never exceeds 60 kW (80 hp). Operating PTO at lower speeds under heavy load could damage PTO.
IMPORTANT: Do not attempt to shift PTO speeds when PTO shaft is turning or PTO clutch is engaged. Damage to PTO shift collars may result.
PTO gear ratio can be changed in the CommandCenter™.
Push down and forward on rear PTO switch to engage PTO clutch. PTO indicator will show PTO engagement on display.
NOTE: Use proper engine speed when shifting into 540E or 1000E.
CommandCenter is a trademark of Deere & Company | ZE59858,000047D-19-20101130 |
