Using Correct Engine Speed

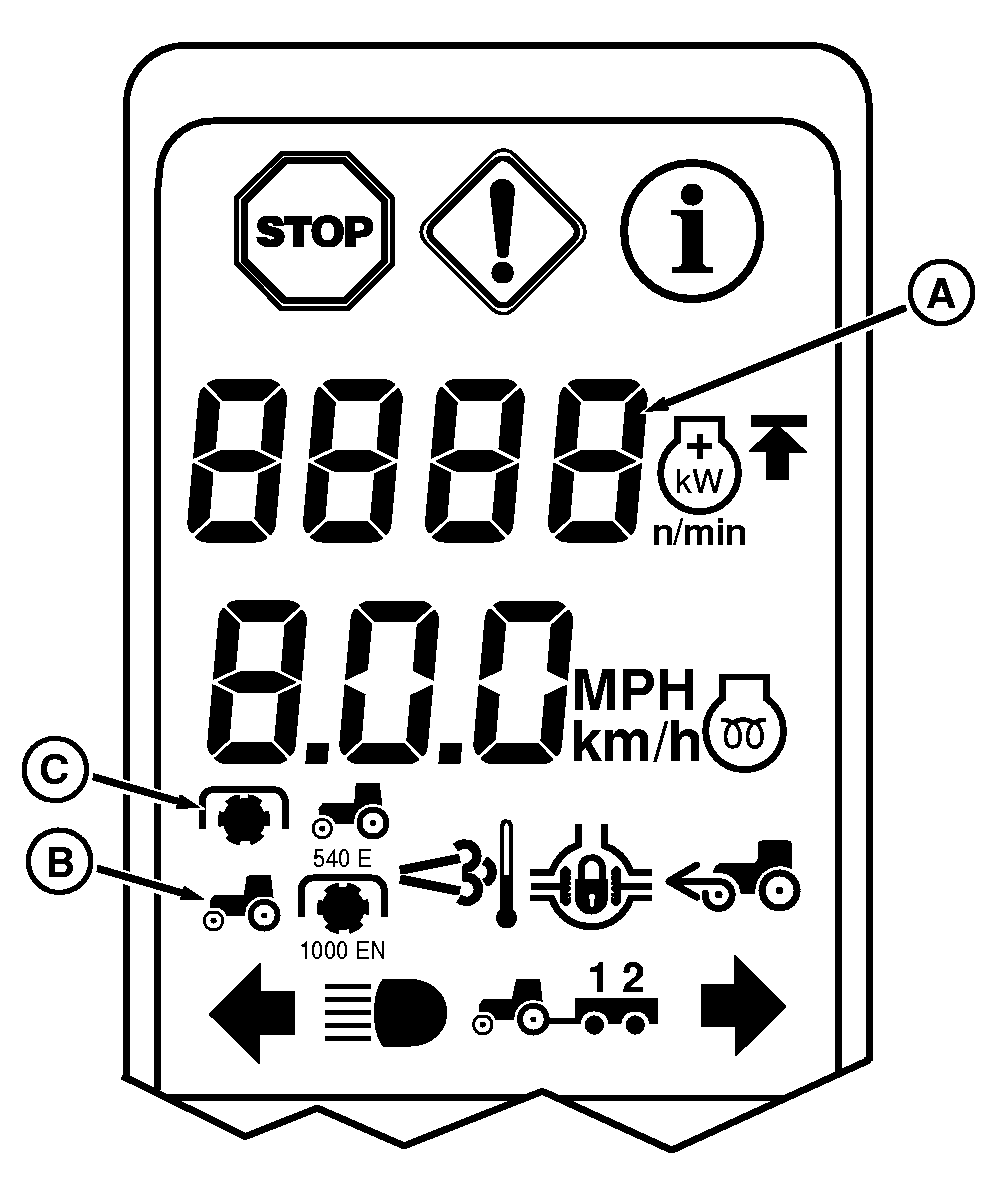

RXA0111057
RXA0111057-UN-14OCT10

A - Tachometer

B - PTO Indicator—Rear

C - PTO Indicator—Front (If Equipped)

Correct engine speed is important. Run engine at 1950 engine rpm for both 540 and 1000 rpm PTO speed operation.

If equipped with 3-speed PTO, run engine at:

  • 1750 rpm—540E and 1000E PTO
  • 1950 rpm—540 and 1000 PTO

ZE59858,000047E-19-20101108
