Installing Quik-Tatch™ Weights

RXA0113873
RXA0113873-UN-09FEB11

RXA0112537
RXA0112537-UN-14DEC10

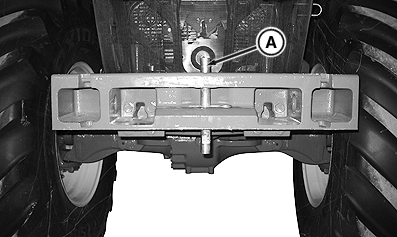

A - Center Pin

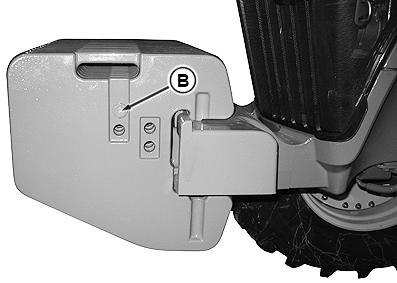

B - Retaining Bolts

Up to 24 Quik-Tatch weights can be installed on tractors.

When required, install Quik-Tatch weights, balanced on each side of center pin (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to specifications.

ItemMeasurementSpecification
Retaining BoltsTorque230 N·m (170 lb-ft)

RXA0113871
RXA0113871-UN-09FEB11

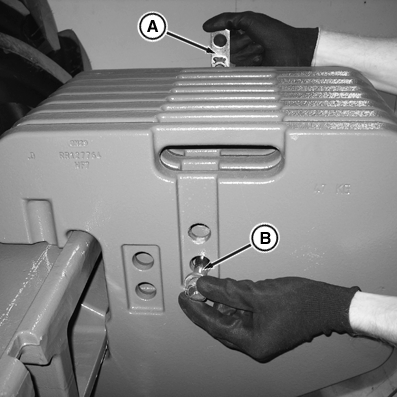

A - Retainers

B - Retaining Bolt

When eight or more weights are installed, insert retainers (A) between weights, one with threaded hole upward and the other with threaded hole downward. Tighten retaining bolts (B) to specifications.

ItemMeasurementSpecification
Retaining BoltsTorque230 N·m (170 lb-ft)

Quik-Tatch is a trademark of Deere & Company

ZE59858,000048B-19-20110207
