Using Rear Wheel Weights

CAUTION:

RW19886A-UN-02AUG99

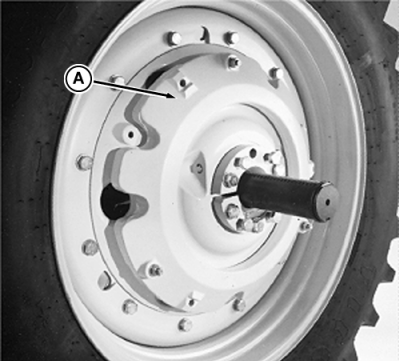

A - Weights

Weights (A) of 75 kg (165 lb) or 205 kg (450 lb) can be installed on inside or outside of wheel. Ten bolt steel wheels require use of 75 kg (165 lb) weight as a starter weight.

NOTE: When using 762 mm (30 in.) tread setting, only one 205 kg (450 lb) weight can be installed on inside of wheel.

Install weights on wheel.

Item	Measurement	Specification
Wheel Weight Attaching Bolts
M16 Bolt	Torque	310 N·m (230 lb-ft)
M20 Bolt	Torque	610 N·m (450 lb-ft)

For additional weights, install bolts in previous weight. Rotate alternate weight to align bolts with weight holes.

Tighten bolts and then retighten after driving approximately 100 m (100 yd).

Retighten bolts after 3 HOURS and again after 10 HOURS of operation.

Check tightness every 250 hours.

IMPORTANT: Inside wheel weights must have at least 25 mm (1 in.) clearance between weight and tractor components.
