Adjusting Toe-In (MFWD and TLS™ Plus Axles)

1.

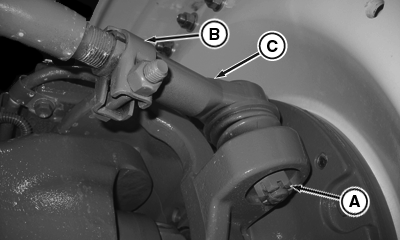

   RXA0113529-UN-11FEB11

   A - Nut and Pin

   B - Clamp Nut

   C - Tie Rod End

   Check to make sure that axle is centered.

---




2. Loosen clamp nut (B) on right or left side of tie rod.

3. Remove pin and nut (A).

4. Remove tie rod end (C) from wheel hub housing.

5. Rotate tie rod end (C) as necessary to obtain toe-in or toe-out less than specifications. Each 1/8 turn equals approximately 4 mm (3/16 in.) change. Setting toe-in to 0.0 mm + or - 3 mm (1/8 in.) will provide least amount of tire wear on hard surfaced roads.

   Item	Measurement	Specification
   Maximum Toe-in or Toe-out	Distance	3 mm (1/8 in.)

6. Tighten each nut to specifications.

   Item	Measurement	Specification
   Tie-Rod Clamp Nut	Torque	75 N·m (55 lb-ft)

   NOTE: Clamp cap screw threads should point to front of tractor.
