Eight-Position MFWD Wheel Settings

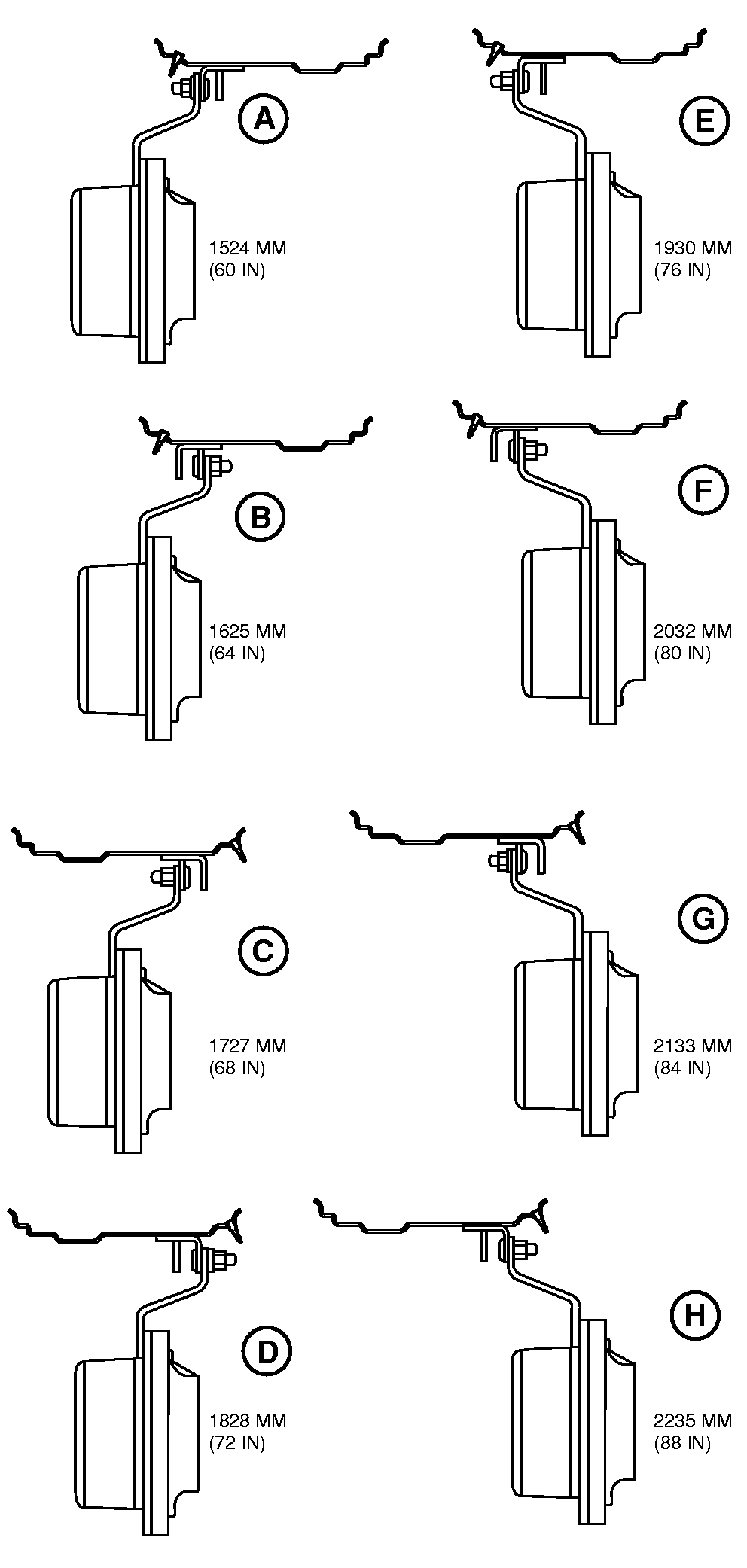

RXA0089742-UN-05JUL06

NOTE: A through H are used for all tires 480 mm (18.9 in.) or smaller.

Tread settings are measured at bottom center line of tire.

Use diagram at the right to adjust rim and disk, to a desired tread setting for all tires 480 mm (18.9 in.) or smaller.

Using a star shaped pattern, torque disk to rim bolts as needed to maintain torque.

Item	Measurement	Specification
Disk to Rim Bolts	Torque	310 N·m (230 lb-ft)

Item	Measurement	Specification
Disk to Hub Nuts	Torque	600 N·m (450 lb-ft)

Retighten bolts after working 3 HOURS, 10 HOURS, and DAILY for the first week of operation and then every 250 hours.

IMPORTANT: Carefully follow procedure for tightening wheel bolts. Failure to do so could lead to wheel hub damage.

Adjust fenders and steering stops as required using the tables and diagrams on the following pages.

NOTE:

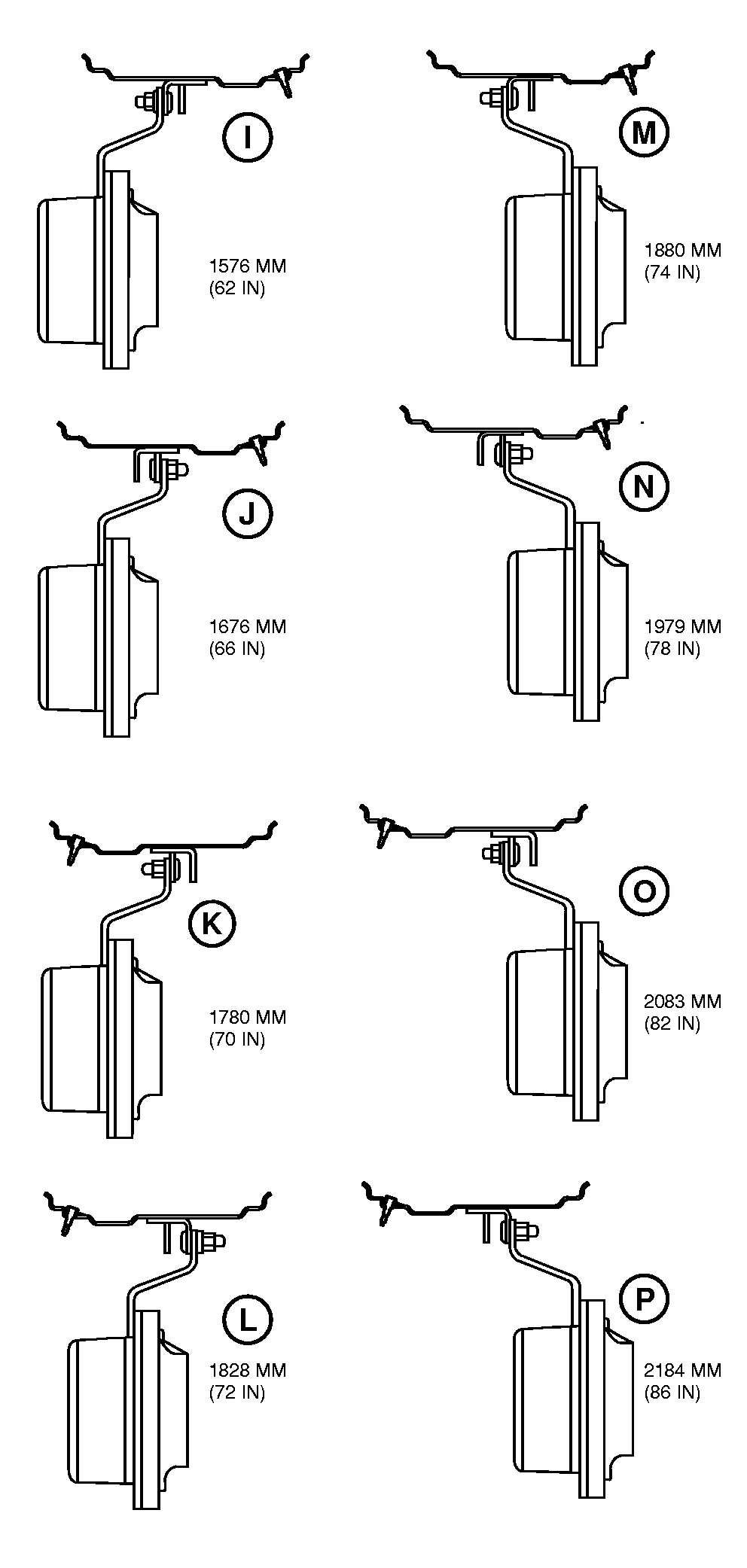

RXA0089743-UN-05JUL06

Wheel Positions For MFWD and TLS™ Plus Axles

Tread settings are measured at bottom center line of tire.

Use diagram at the right to adjust rim and disk, to a desired tread setting for 540, 600, and 620 sized tires.

Using a star shaped pattern, torque disk to rim bolts as needed to maintain torque.

Item	Measurement	Specification
Disk to Rim Bolts	Torque	310 N·m (230 lb-ft)

Item	Measurement	Specification
Disk to Hub Nuts	Torque	600 N·m (450 lb-ft)

Retighten bolts after working 3 HOURS, 10 HOURS, and DAILY for the first week of operation and then every 250 hours.

IMPORTANT: Carefully follow procedure for tightening wheel bolts. Failure to do so could lead to wheel hub damage.

Adjust fenders and steering stops as required using the tables and diagrams on the following pages.
