MFWD Fender Settings—Deluxe Pivoting Fenders

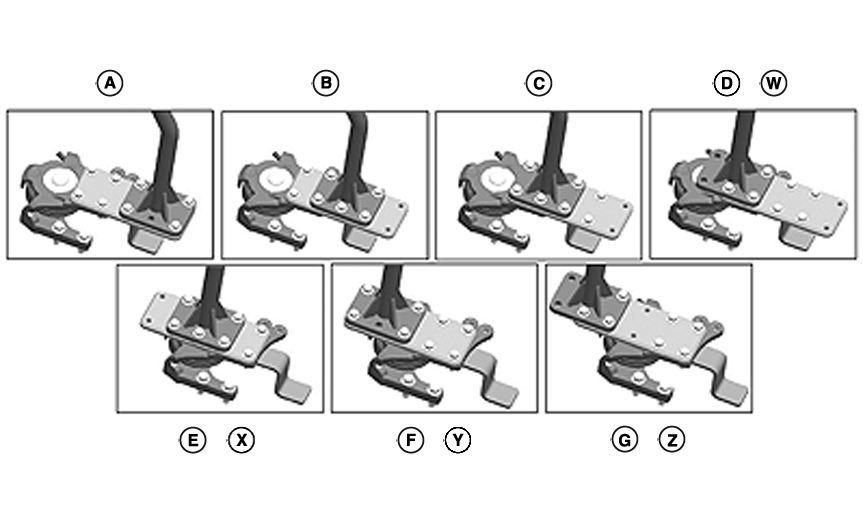

Bracket Positions

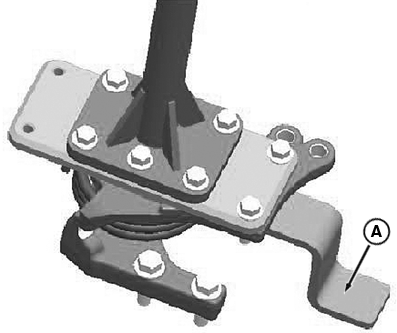

The bracket (A) that contacts fender stop can be replaced as it wears.

RXA0112129-UN-14FEB11

A - Bracket

To prevent damage to fender by contact with wheel or hood, place fender bracket and fender stopper in recommended positions.

RXA0112131-UN-09FEB11

NOTE: The following positions are only recommendations. Depending on tire size, fender size, and steering stop position, fenders may need additional adjustment from recommended positions listed below.

Stopper Positions

NOTE: The following positions are only recommendations. Depending on tire size, fender size, and steering stop position, fenders may need additional adjustment from recommended positions listed below.

RXA0112135-UN-07JAN11

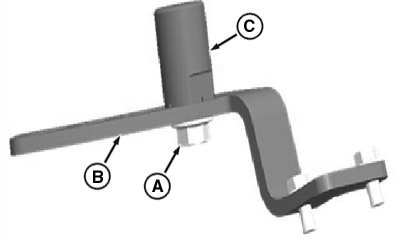

A - Screw

B - Bracket

C - Stopper

Stopper (C) can be replaced as it wears.

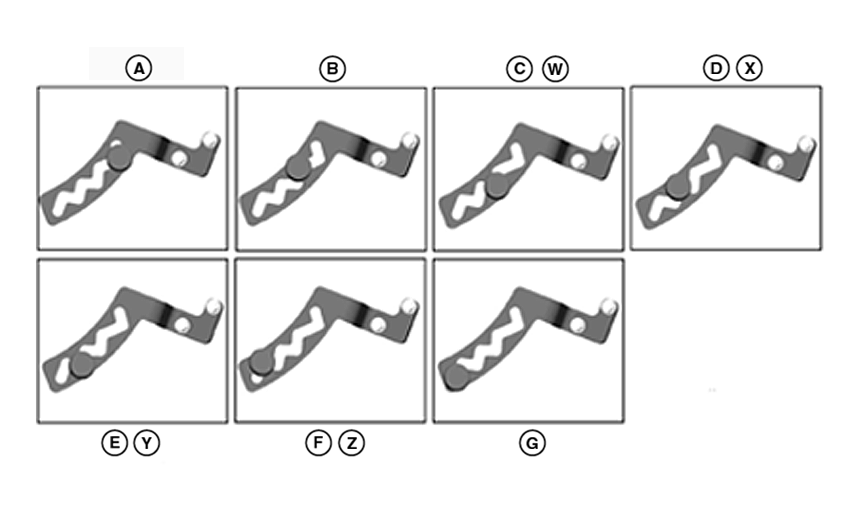

Some adjustment may be necessary if fender contacts hood on tight turns. Move stopper (C) towards axle, from G position to A position, to move fender further away from hood.

Some adjustment may be necessary if tire contacts fender on tight turns. Move stopper (C) away from axle, from A position to G position, to move fender further away from tire.

RXA0112126-UN-11FEB11
