Installing Rear Steel Wheel to Hub

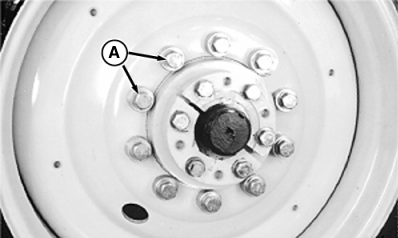

RXA0084448-UN-05OCT05

Standard Hub Shown

A - Wheel to Hub Bolts

1. CAUTION: Avoid the possibility of personal injury. Failure to follow torquing sequence and procedure will result in damage to equipment and may result in personal injury. Wheel bolts are critical and require repeated torquing.

   NOTE: Check the hole sizes on duals, the wheel rim (A) may have one tight fit hole smaller than the other holes. One slot fit hole is 180° from the tight fit hole, for improved wheel centering.

   Install and hand tighten bolts (A).

2. Tighten all bolts until bolts maintain torque according to specifications.

   Item	Measurement	Specification
   Wheel-to-Hub Bolts	Torque	600 N·m (445 lb-ft)

3. Drive tractor 100 meters (100 yd) and retighten bolts.

4. Tighten again at 3 HOURS, 10 HOURS, and DAILY for the first week of operation and then every 250 hours.

   IMPORTANT: Carefully follow procedure for tightening wheel bolts. Failure to do so could result in equipment damage.
