Check Coolant Level

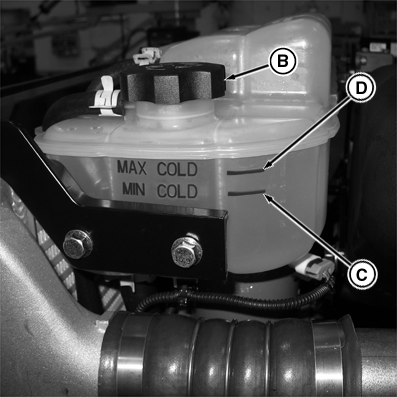

RXA0109394-UN-16AUG10

RXA0111172-UN-21DEC10

A - Hood Release Loop

B - De-aeration Tank Cap

C - Min Cold Line

D - Max Cold Line

1. Pull hood release loop (A) and raise hood.

2. Check coolant level on side of de-aeration tank. Level should be at or above Min Cold line (C). If level is low, before adding coolant check for any signs of leakage. Repair if necessary.

   IMPORTANT: Do not open de-aeration tank cap (B) when engine is warm. Doing so will add air to coolant system.

   NOTE: If coolant level is low, but there is no sign of an external leak, there may be an internal coolant leak. Contact your John Deere™ dealer.

3. Wait until engine is cool. Remove de-aeration tank cap (B) and add coolant as specified in Fuel, Lubricants and Coolant section. Do not fill above Max Cold line (D). Reinstall de-aeration tank cap (B).

4. Lower and secure hood.
