Clean Radiator, Coolers, and Air Conditioning Condenser

  1. Stop engine and remove key.

  2. Clean grille and side screens using a brush.

  3. Pull hood release (A) and raise hood.

    RXA0109394
    RXA0109394-UN-16AUG10

    RXA0109396
    RXA0109396-UN-16AUG10

    RXA0109425
    RXA0109425-UN-08OCT10

    A - Hood Release loop

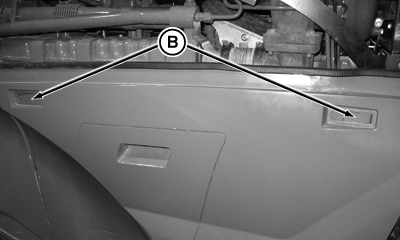

    B - Left Rear Latch Buttons

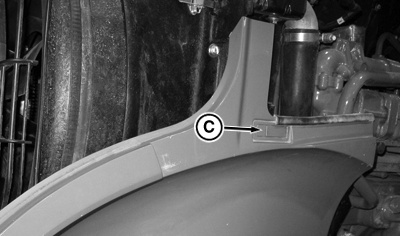

    C - Left Front Latch Button


  4. Depress latch button (B) to remove left rear side shield.

  5. Depress latch button (C) to remove left front side shield.

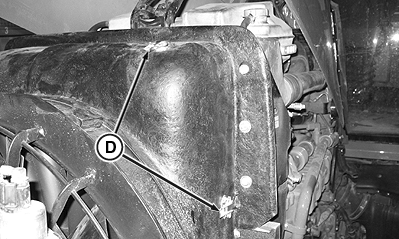

  6. RXA0111192

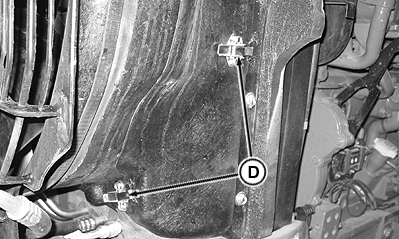

    RXA0111192-UN-14OCT10

    RXA0111194
    RXA0111194-UN-14OCT10

    D - Radiator Shield Latches

    Release radiator shield latches (D) and remove cover.


  7. RXA0111196
    RXA0111196-UN-14OCT10

    RXA0111198
    RXA0111198-UN-14OCT10

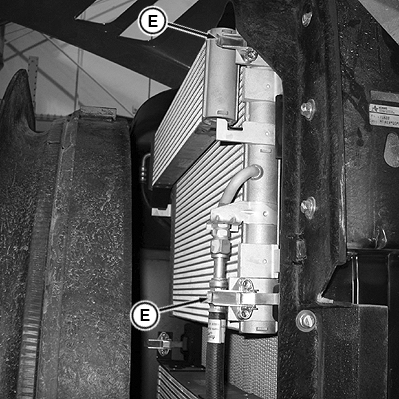

    E - A/C Condenser and Fuel Cooler Latches

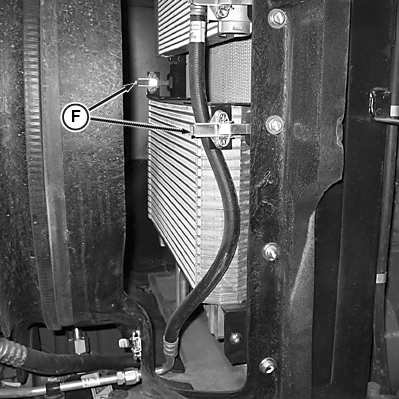

    F - Hydraulic Oil Cooler Latches

    Release latches (E) on left side of A/C condenser and fuel cooler and pivot condenser and cooler forward and left.


  8. Release latches (F) along left and right sides of hydraulic oil cooler and pivot unit forward and down.

  9. Use compressed air or water to clean A/C condenser, fuel cooler, hydraulic oil cooler, air intercooler, and engine coolant radiator. Straighten any bent fins.

  10. Reposition and secure components, shields, and hood.

ZE59858,00004FE-19-20101108
