Check Engine Oil Level

RXA0109397-UN-16AUG10

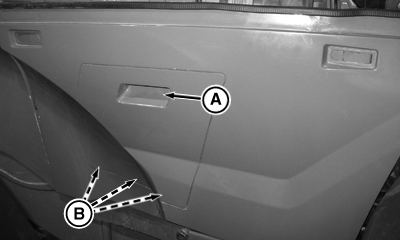

Engine Service Access Panel-Left Side

RXA0109386-UN-16AUG10

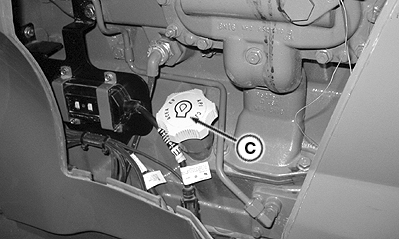

Oil Filler Cap

RXA0109388-UN-16AUG10

RXA0109390-UN-16AUG10

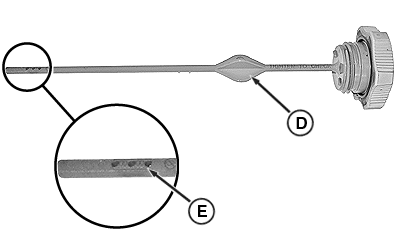

Oil Dipstick

A - Hand Grip Recess

B - Alignment Tabs

C - Filler Cap

D - Dipstick

E - Top of Crosshatch

1. Park tractor on level ground. Stop engine and remove key.

2. Remove Engine Access Panel. Pull outward, using hand grip recess (A). Magnets secure top of panel. Lift panel from alignment tabs at bottom (B).

3. NOTE: Fully tighten filler cap to check oil. Oil level at top of crosshatch area on dipstick is considered FULL.

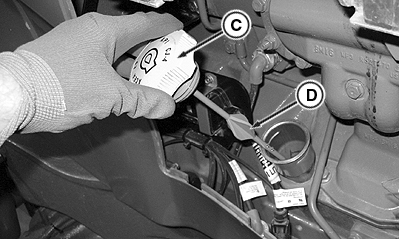

   Dipstick is attached to filler cap (C). Remove cap and clean dipstick. Retighten cap, then remove and check oil level on dipstick (D). Oil level should be between ”ADD” mark and top (E) of crosshatch area on dipstick.

4. If needed, remove cap and add oil recommended in Fuel, Lubricants and Coolant section .

   IMPORTANT: Do not operate engine with oil level below ”ADD” mark on dipstick.
