Draining Water Separator

1.
   RXA0109394-UN-16AUG10


   RXA0109427-UN-16AUG10

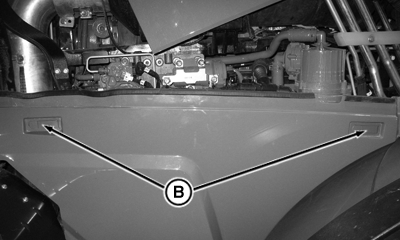

   Right Rear Side Panel

   A - Hood Release Loop

   B - Latch Buttons

   Pull hood release loop (A) and raise hood.

---




2. Remove right rear side shield. Depress latch buttons (B).

3.
   RXA0111250-UN-14OCT10

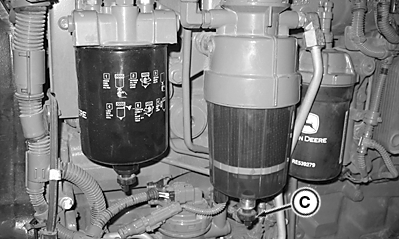

   Water Separator Drain Valve—6.8 L Shown


   RXA0109392-UN-10SEP10

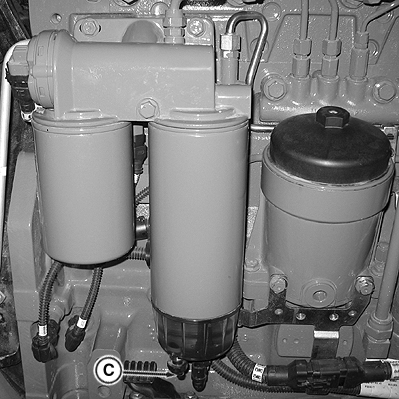

   Water Separator Drain Valve—9.0 L Shown

   C - Drain Valve

   Open drain valve (C) and drain accumulated water. Close drain valve.

---
