Lubricate MFWD or Triple Link Suspension Plus (TLS™ Plus) Kingpins, Tie Rod Ends, Steering Cylinder, Axle Pivot, Panhard Rod, and U-Joints

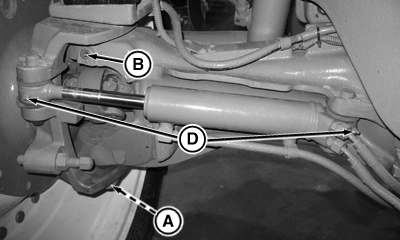

RXA0109431-UN-16AUG10

Kingpins and Steering Cylinder

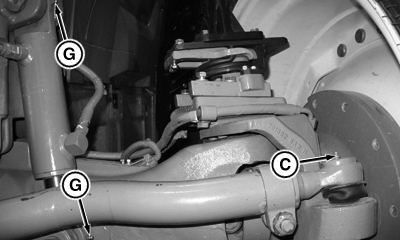

RXA0109440-UN-16AUG10

Tie Rods and Axle Cylinder

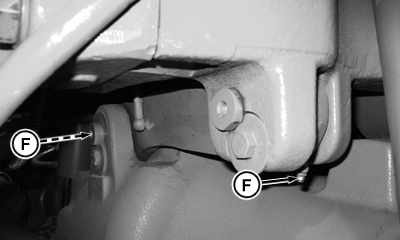

RXA0109442-UN-16AUG10

Panhard Rod

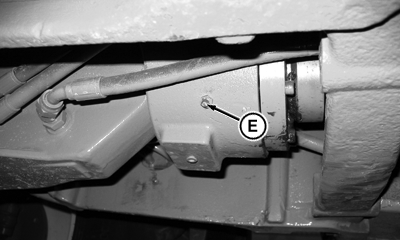

RXA0109444-UN-16AUG10

Axle Pivot

A - Kingpin Fittings, Bottom

B - Kingpin Fittings, Top

C - Tie Rod End Fittings

D - Steering Cylinder Fittings

E - Axle Pivot Fittings

F - Panhard Rod Fittings

G - MFWD Axle Cylinder Fittings

Normal service is every 250 hours. In wet conditions, or when AutoTrac™ is used, service daily or every 10 hours.

Kingpins—Lubricate fittings (A and B) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods—Lubricate fittings (C).

Steering Cylinder—Lubricate fittings (D).

Axle Pivot—Lubricate front and rear fittings (E).

Panhard Rod —Lubricate left and right fittings (F).

Axle Cylinder—Lubricate top and bottom fittings (G).

NOTE: All fittings are the same for the left and right sides.

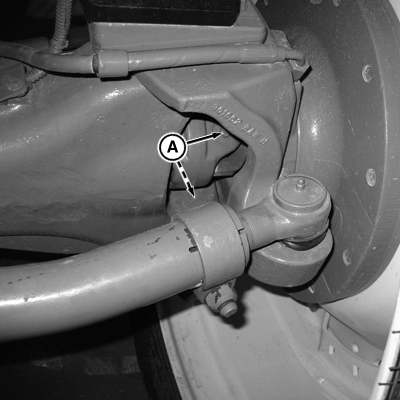

RXA0109446-UN-16AUG10

Hub U-joint Lubrication Points

A - Lubrication Points

Drilled passages in the U-joint allow grease to reach all four bearings from a single grease fitting.

For normal operations, outboard U-joints are sealed and not permanently equipped with grease fittings. To lubricate proceed as follows:

1. Replace plugs with M10 thread 90° grease fittings, part number 58M5580.
2. Apply grease to both U-joints at lubrication points (A).

   Item	Measurement	Specification
   Plug	Torque	0.904 N·m (8 lb-in)
