Lubricate Front Hitch (If Equipped)

RXA0110637-UN-03SEP10

RXA0110655-UN-03SEP10

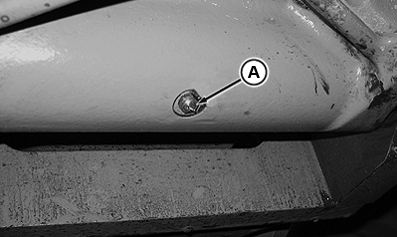

A - Pivot Point Grease Fitting

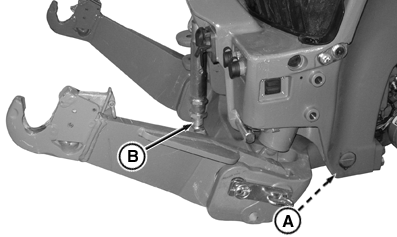

B - Center Link Threads

Grease the main pivot point through the grease fitting (A) underneath the front hitch, and the threads on the center link (B).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. Normal service is every 250 hours. If used daily, service every 50 hours.
