Check Secondary Brake

RXA0110805-UN-22SEP10

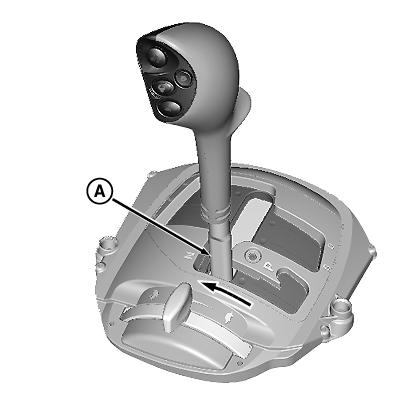

AutoQuad™ PLUS Shift Lever Shown

RXA0068268-UN-27AUG03

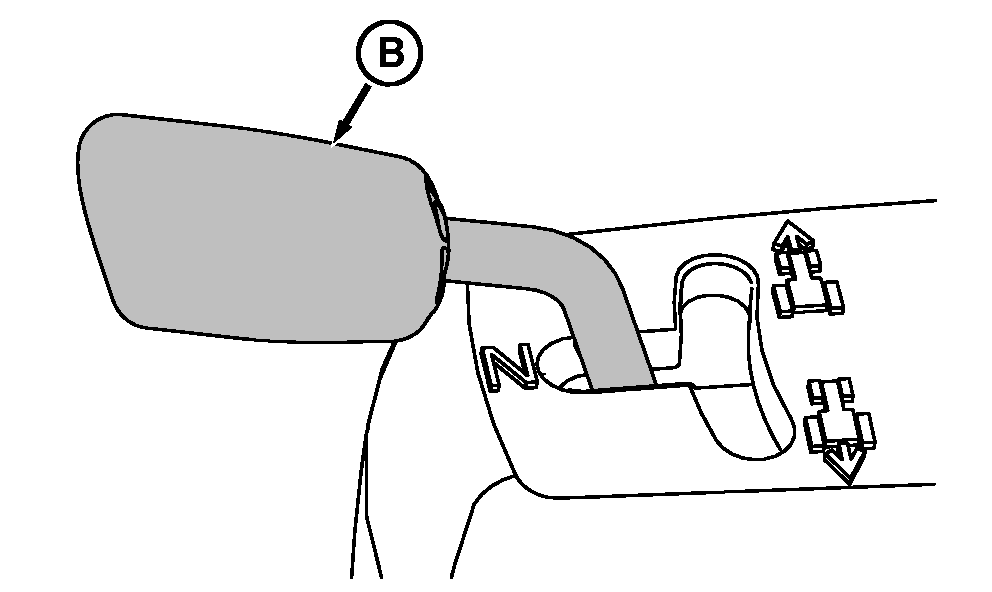

Left-Hand Reverser AutoQuad™ PLUS Shown

RXA0110807-UN-22SEP10

A - Range Shift Lever

B - Left-Hand Reverser

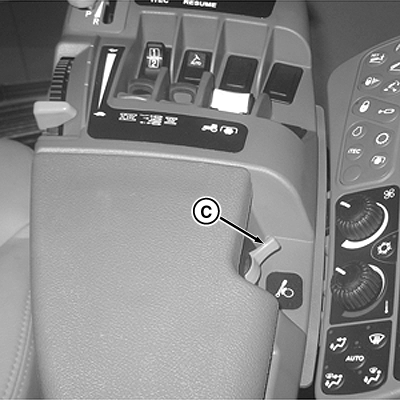

C - Secondary Brake

1. Park tractor on incline. Incline should be steep enough to allow tractor to roll easily when tractor is placed in Neutral.

2. For PowrQuad™ PLUS and AutoQuad™ PLUS, move range shift lever (A) to NEUTRAL position.

3. Move left-hand reverser (B) to NEUTRAL position.

4. For CommandQuad™, move left-hand reverser (B) to NEUTRAL position.

5. Engage secondary brake (C).

   If tractor does not hold with secondary brake engaged, see your John Deere™ dealer.
