Check Neutral Start System—IVT™/AutoPowr™

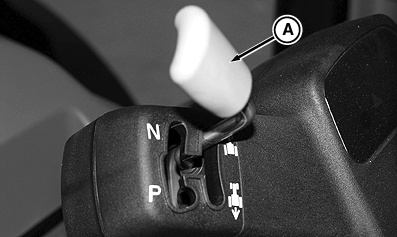

RXA0083097-UN-23AUG05

IVT™/AutoPowr™ Left-Hand Reverser in Forward

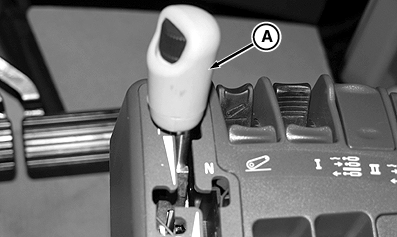

RXA0083099-UN-23AUG05

IVT™/AutoPowr™ Right-Hand Reverser in Forward

A - Reverser Lever

1. Make sure that everyone is clear of tractor.

2. Fully depress clutch and brake pedals.

3. Move left-hand reverser (A) to any position except NEUTRAL or PARK position.

4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere™ dealer immediately.

   Engine should start in NEUTRAL or PARK positions only.
