Check MFWD Axle Housing Oil Level

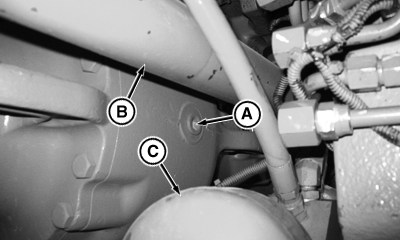

RXA0109452-UN-17AUG10

Left-Hand Side

A - Plug

B - Tie Rod

C - TLS™ Plus Accumulator

1. Park tractor on level surface.

2. Remove plug (A). Oil level should be just below plug hole.

3. If low, remove plug (A) and add oil until level is correct. John Deere™ Hy-Gard™ oil is recommended. (See MFWD AXLE HOUSING AND WHEEL HUB OIL in Fuel, Lubricants and Coolant section.)

4. Apply pipe sealant with TEFLON®, or equivalent, to threads of plug (A).

5. Install plugs and tighten to specifications.

   Item	Measurement	Specification
   Plugs-to-Axle Housing	Torque	70 N·m (52 lb-ft)
