Check MFWD Wheel Hub Oil Level

RXA0110403
RXA0110403-UN-13SEP10

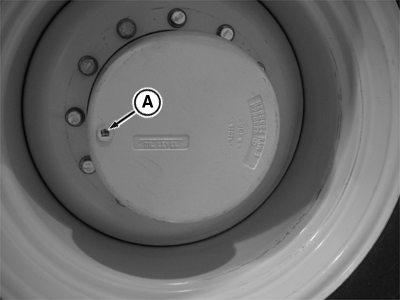

A - Plug

  1. Park tractor on level surface.

  2. Turn wheel hubs until the words OIL LEVEL are horizontal.

  3. Remove plug (A). Oil level should be just below plug hole.

  4. If low, add oil through same hole. John Deere™ Hy-Gard™ oil is recommended. (See MFWD AXLE HOUSING AND WHEEL HUB OIL in Fuel, Lubricants, and Coolant section.)

  5. Apply pipe sealant with TEFLON®, or equivalent, to threads of plug.

  6. Install the plug and tighten to specifications.

    ItemMeasurementSpecification
    Plug-to-HubTorque70 N·m (52 lb-ft)
