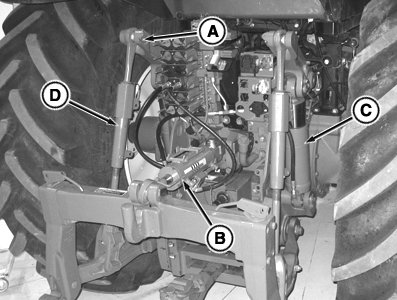

Lubricate Rear Hitch Components

RXA0110566-UN-14SEP10

A - Lift Arm

B - Center Link

C - Lift Cylinders

D - Lift Link

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section. Normal service interval is every 250 hours. If used daily, service every 50 hours.

Lubricate all grease fittings on each hitch component (A—D).
