Changing Engine Oil and Filter

For Top Fill Engine Oil Filters:

IMPORTANT: Sulfur content should not exceed 0.10%. Sulfur content less than 0.10% is preferred. Refer to Fuel, Lubricants and Coolant section for more information on oil change intervals.

NOTE: The initial break-in service interval of a new or rebuilt wet sleeve engine with Break-In Plus must go at least 100 hours to assure the surface mating of the rings and liners has had an opportunity to occur. The 100 hour minimum applies to all new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals for your engine. To confirm which engine your tractor is equipped with, see Identification Numbers Section - Record Engine Serial Number in this Operator’s Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals for your engine located in the Fuels, Lubricants, and Coolant Section of this Operator’s Manual.

1.
   RXA0109394-UN-16AUG10


   RXA0109427-UN-16AUG10


   RXA0109454-UN-17AUG10

   Drain Plug 9.0 L Engine

   A - Hood Release Loop

   B - Latch Buttons

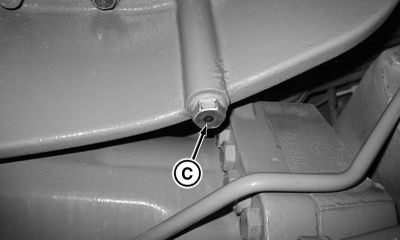

   C - Engine Drain Plug

   Operate engine for approximately 5 minutes to warm oil.

---




2. Stop engine and remove key.

3. Open hood by pulling hood release lever (A).

4. Remove right rear service panel by pressing latch buttons (B).

5. Remove engine fill cap (at dipstick).

6. Put a large catch pan below engine drain plug (C). Remove plug to drain oil while engine is warm.

   NOTE: Do not remove plug on the base of the oil filter housing. Oil will automatically drain back into the crankcase when filter is removed.

7.
   RXA0110845-UN-29SEP10


   RXA0110847-UN-29SEP10

   Removing Engine Oil Filter From Housing


   RG11628-UN-01FEB01

   Removing Engine Oil Filter From Cover

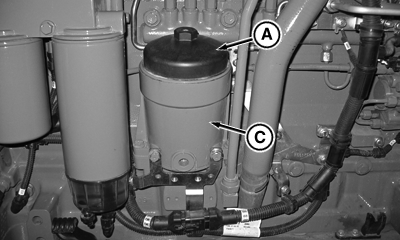

   A - Oil Filter Cover

   B - Oil Filter

   C - Oil Filter Housing

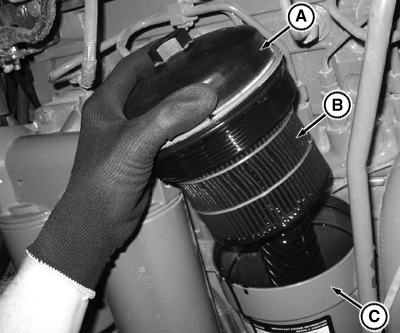

   Using a 32 mm wrench, unscrew oil filter cover (A) and lift as shown to allow filter (B) to drain into crankcase.

---




8. Remove filter cover with filter (B) attached.

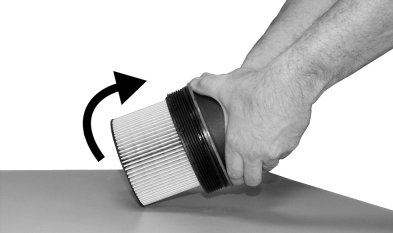

9. While holding cover (A), strike filter (B) against solid surface to remove filter. Discard used filter.

10. Remove old O-ring, and replace with new O-ring provided with new filter element.

11. Press new filter (B) into cover (A) until it snaps into place.

12. Insert filter (B) and cover (A) into oil filter housing (C), then tighten cover to torque specification.

    Item	Measurement	Specification
    Oil Filter Cover
    Cover	Torque	40 N·m (30 lb-ft)

13. Install drain plug after oil has been drained from crankcase.

14. Refill crankcase with seasonal viscosity grade oil.

    Item	Measurement	Specification
    9.0 L Crankcase	Capacity	27 L (28.5 qt)

15. Start engine and check for leaks.

16. Stop engine. Recheck oil level.

For Screw Off Engine Oil Filters:

IMPORTANT: Sulfur content should not exceed 0.10%. Sulfur content less than 0.10% is preferred. Refer to Fuel, Lubricants and Coolant section for more information on oil change intervals.

NOTE: The initial break-in service interval of a new or rebuilt wet sleeve engine with Break-In Plus must go at least 100 hours to assure the surface mating of the rings and liners has had an opportunity to occur. The 100 hour minimum applies to all new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals for your engine. To confirm which engine your tractor is equipped with, see Identification Numbers Section - Record Engine Serial Number in this Operator’s Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals for your engine located in the Fuels, Lubricants, and Coolant Section of this Operator’s Manual.

1.
   RXA0109394-UN-16AUG10


   RXA0109427-UN-16AUG10


   RXA0110861-UN-29SEP10

   Drain Plug 6.8 L Engine

   A - Hood Release Loop

   B - Latch Buttons

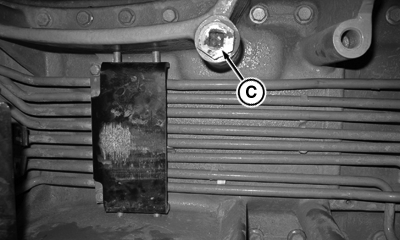

   C - Engine Drain Plug

   Operate engine for approximately 5 minutes to warm oil.

---




2. Stop engine and remove key.

3. Open hood by pulling hood release lever (A).

4. Remove right rear service panel by pressing latch buttons (B).

5. Remove engine fill cap (at dipstick).

6. Put a large catch pan below engine drain plug (C). Remove plug to drain oil while engine is warm.

7.
   RXA0110859-UN-29SEP10

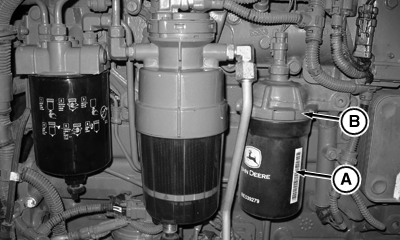

   A - Oil Filter

   B - Oil Filter Housing

   Using an oil filter wrench, remove oil filter from oil filter housing (B).

---




8. Discard used oil filter.

9. Lubricate new filter seal with clean oil.

10. Insert filter (A) until gasket contact oil filter housing (B) surface. Hand tighten additional 1/2 turn.

11. Install drain plug after oil has been drained from crankcase.

12. Refill crankcase with seasonal viscosity grade oil (see Fuel, Lubricants, and Coolant section).

    Item	Measurement	Specification
    6.8 L Crankcase	Capacity	24 L (25.4 qt)

    Item	Measurement	Specification
    9.0 L Crankcase	Capacity	27 L (28.5 qt)

13. Start engine and check for leaks.

14. Stop engine. Recheck oil level. Add oil if necessary.
