Checking Dual Beam Radar Sensor (If Equipped)

RXA0110398-UN-13SEP10

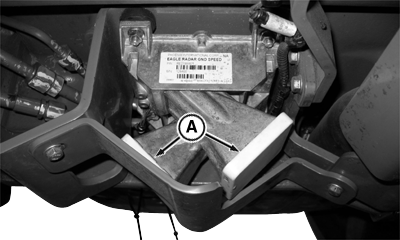

Dual Beam Radar, CommandQuad™ Transmission Shown

A - Sensor Horns

Check and clean radar sensor horns (A) depending on operating conditions.

IMPORTANT: Inspect radar sensor horns for dirt or debris build up, which may affect accuracy performance.

Avoid use of high pressure washer nozzle pointed directly at radar.

Avoid damage to radar and wiring harness when using sharp tools to remove dirt or packed mud around radar.

The dual beam radar is located on bottom of transmission.

Clean radar sensor horns (A) with warm water and mild soap.

Dry with clean soft cloth.
