Inspecting Engine Air Intake System

  1. RXA0109394
    RXA0109394-UN-16AUG10

    RXA0109396
    RXA0109396-UN-16AUG10

    A - Hood Release Loop

    B - Latch Buttons

    Pull hood release loop (A) to raise hood.



  2. Pull latch buttons (B) to remove left rear panel.

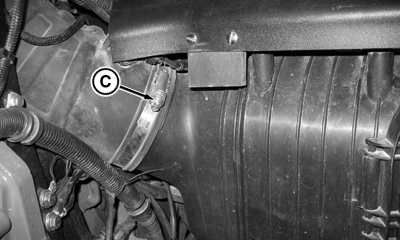

  3. RXA0109493
    RXA0109493-UN-17AUG10

    Hose Clamps After Air Filter

    RXA0109495

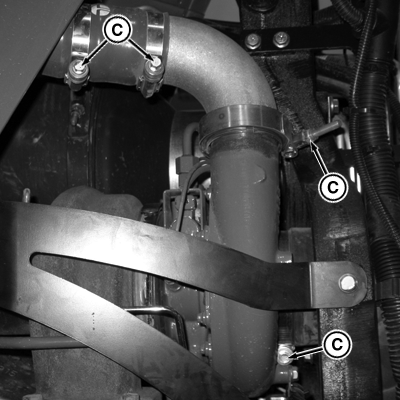

    RXA0109495-UN-17AUG10

    Hose Clamps Before and After Turbocharger

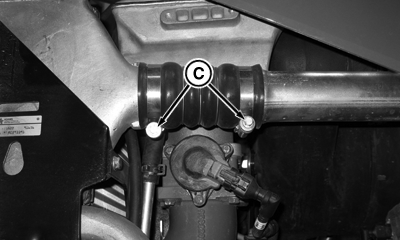

    RXA0109497
    RXA0109497-UN-17AUG10

    Hose Clamps Before Intercooler

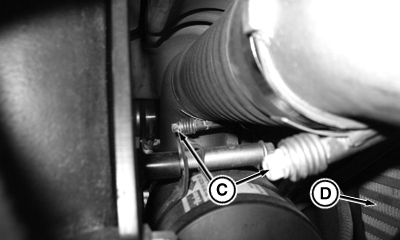

    RXA0109499
    RXA0109499-UN-17AUG10

    Hose Clamps After Intercooler

    C - Clamps

    D - Intercooler

    Tighten hose clamps (C) after air filter.



  4. Tighten hose clamps (C) before and after turbocharger.

  5. Tighten hose clamps (C) before and after intercooler (D).
