Changing MFWD Axle Housing Oil

RXA0109452-UN-17AUG10

Fill/Check Hole

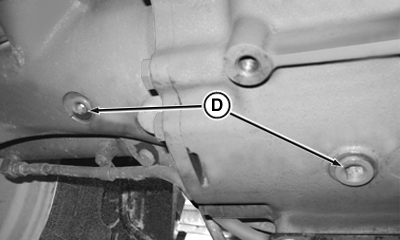

RXA0109739-UN-22SEP10

Drain Plugs

A - Fill/Check Hole

B - TLS™ Plus Accumulator (If Equipped)

C - Tie Rod

D - Drain Holes

1. Remove drain plugs (D) from axle housing and differential housing.

2. Install plugs (D) after oil has drained. Tighten to specifications.

3. Add John Deere™ Hy-Gard™ oil as specified in MFWD AXLE HOUSING AND WHEEL HUB OIL in Fuel, Lubricants and Coolant section, through fill hole (A) until oil is even with bottom of hole (A).

   Item	Measurement	Specification
   Axle Housing	Capacity	14.4 L (15.2 qt)

4. Install plug (A).

5. After a few minutes of operation, recheck oil level. Add more if necessary.

6. Apply pipe sealant with TEFLON®, or equivalent, to threads of plug (A).

7. Install plugs and tighten to specifications.

   Item	Measurement	Specification
   Plugs-to-Axle Housing	Torque	70 N·m (52 lb-ft)
