Changing Front PTO Housing Oil (If Equipped)

RXA0110821
RXA0110821-UN-22SEP10

RXA0110843
RXA0110843-UN-29SEP10

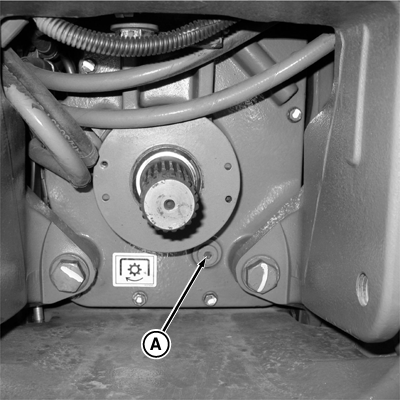

A - Check/Fill Plug

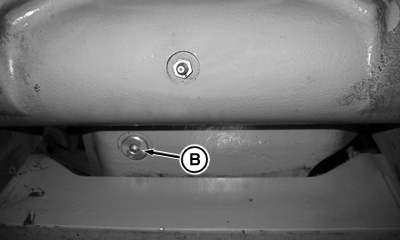

B - Drain Plug

NOTE: Front PTO housing holds 4 L (4.25 qt) of oil. Recommended oil is the same as for transmission: John Deere™ Hy-Gard™

  1. Remove plugs (A and B).

  2. Install plug (B) after oil has drained.

  3. Fill with transmission/hydraulic oil specified in Fuel, Lubricants and Coolant section, through fill hole (A) until oil is even with bottom of hole.

  4. Install plug (A).

  5. After a few minutes of operation, recheck oil level. Add more if necessary.

John Deere is a trademark of Deere & Company
Hy-Gard is a trademark of Deere & Company

ZE59858,0000536-19-20101221
