Replacing Front PTO Oil Filter (If Equipped)

RXA0109507
RXA0109507-UN-19AUG10

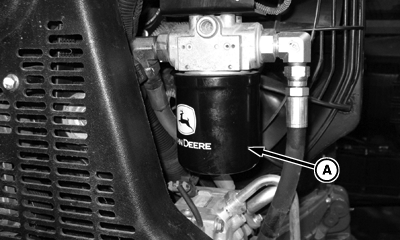

Right Side

A - Filter

  1. Remove filter (A).

  2. Lubricate new filter seal with hydraulic oil.

  3. Install filter until gasket contacts surface. Hand tighten additional 1/2 turn.

  4. Check oil level and add oil as required.

ZE59858,0000537-19-20101108
