Replacing Open Crankcase Ventilation Filter (6.8 L Only)

1.
   RXA0109394-UN-16AUG10


   RXA0109427-UN-16AUG10


   RXA0109429-UN-08OCT10


   RXA0110973-UN-21SEP10

   OCV Filter

   A - Hood Release Loop

   B - Right Rear Cover Tabs

   C - Right Front Cover Tabs

   D - Filter Lid

   E - Filter Housing

   Pull hood release loop (A) and open hood.

---




2. Press right rear cover tabs (B) and remove right rear engine cover.

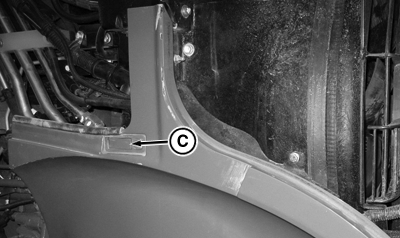

3. Press right front cover tabs (C) and remove right front engine cover.

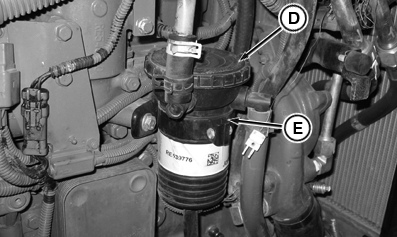

4. Remove filter lid (D).

5. Remove OCV filter from inside of filter housing (E).

6. To install new filter, align tabs on new filter with tabs on inside of filter housing (E).

7. Replace lid and hand tighten.
