Replacing Fan Belt

1. NOTE:


   RXA0109394-UN-16AUG10

   Raise Hood


   RXA0109517-UN-19AUG10

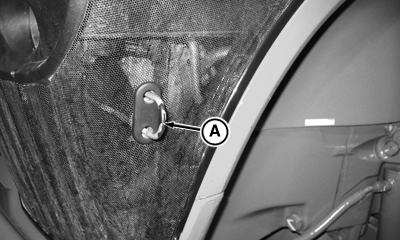

   A - Hood Release Loop

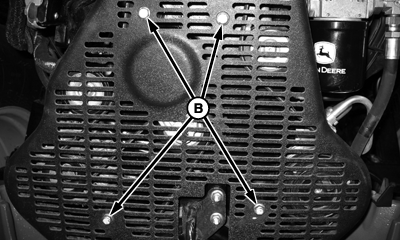

   B - Cap Screws

   Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

   Pull hood release loop (A) and raise hood.

---




2. Remove cap screws (B) and remove belt cover.

3.
   RXA0109509-UN-19AUG10

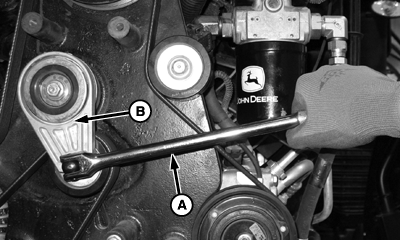

   A - 1/2 in. Drive Breaker Bar

   B - Belt Tensioner

   Release tension on belt using 1/2 in. drive ratchet or breaker bar (A) on belt tensioner (B).

---




4. While continuing to apply pressure with breaker bar (A), remove belt from tensioner pulley (B).

5. Relax tension and completely remove belt.

6. Install new belt on all pulleys, except tensioner pulley.

7. Using breaker bar, release tension on tensioner pulley and position belt over pulley.

8. Slowly relax force on breaker bar.

9. Install fan cover and lower hood.

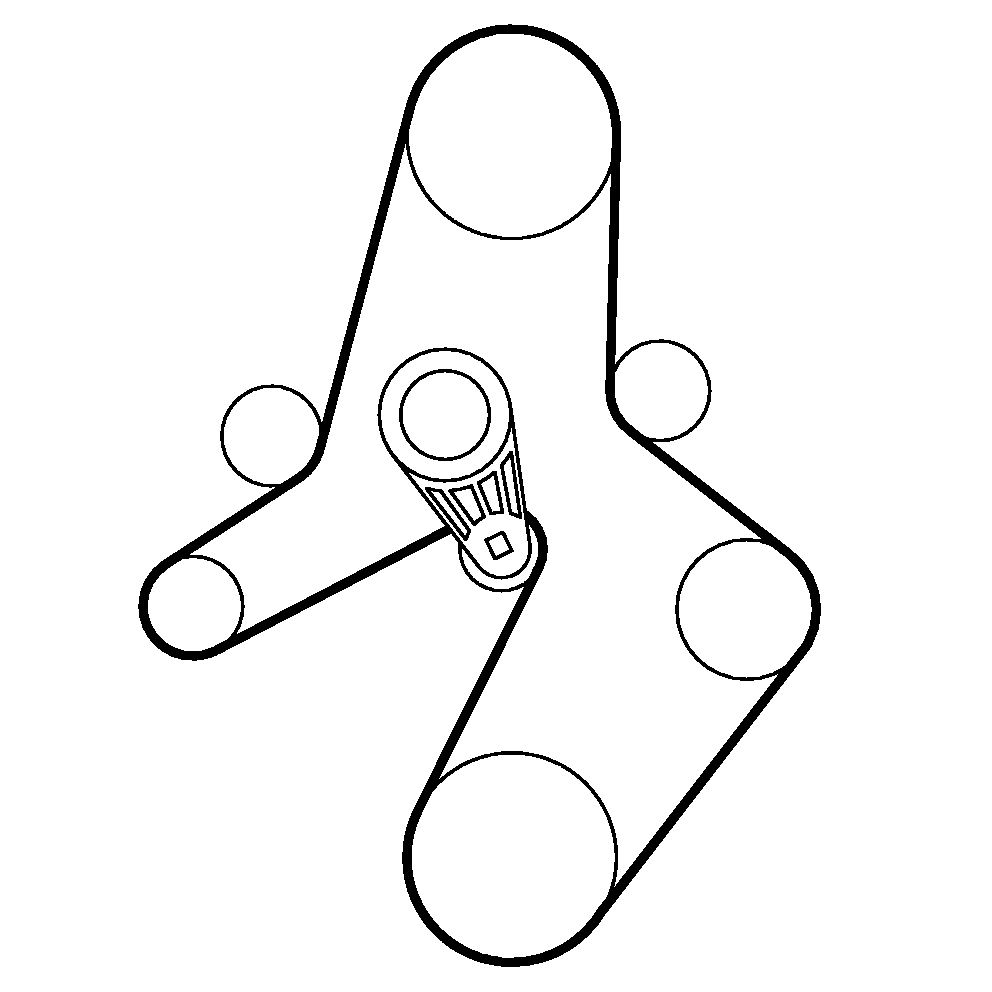

RXA0111135-UN-07OCT10
