Checking Weep Hole

RXA0110635
RXA0110635-UN-03SEP10

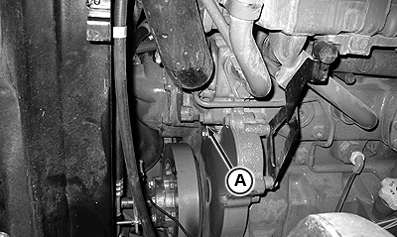

Front Left Side of Engine

RXA0110632
RXA0110632-UN-03SEP10

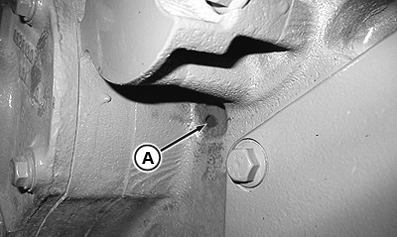

Coolant Pump Weep Hole

A - Weep Hole

  1. Remove left-hand side panel.
  2. Inspect weep hole (A) for oil or coolant leakage.
  • Oil leakage indicates a damaged rear seal.
  • Coolant leakage indicates a damaged front seal.

If leakage is detected, see your John Deere™ dealer to replace complete coolant pump assembly (repair parts are not available).
